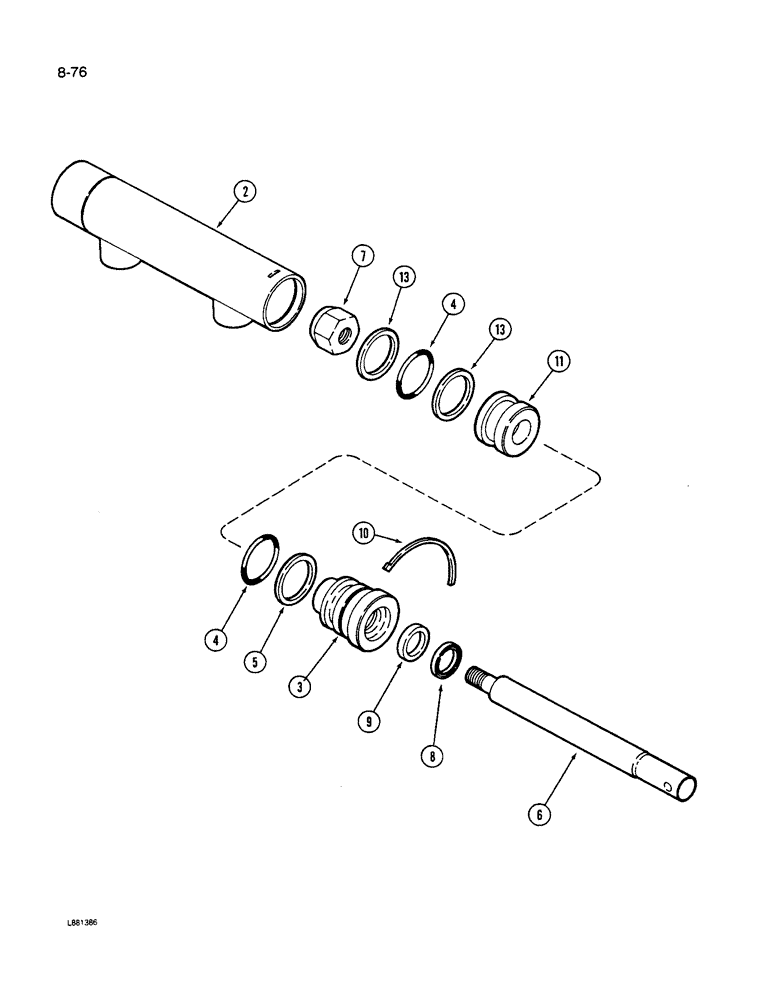

Запчасти Case IH 1640 (8-76) - SEPARATOR CLUTCH CYLINDER (07) - HYDRAULICS

1346042C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - separator clutch, Includes: Ref. 2 - 13

1шт.

Part number stamped on part.

1шт.

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - separator clutch, Includes: Ref. 2 - 13

1шт.

Part number stamped on part.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order assembly)

1шт.

3

108641C1

GLAND

HEAD - front

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of O-ring and Seal Service Kit, P/N 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

Part of O-ring and Seal Service Kit, P/N 63884C92

1шт.

6

1979793C1

PISTON ROD

ROD - piston (Used with 1346042C1 cylinder)

1шт.

6

108639C1

PISTON ROD

ROD - piston (Used with 133408C92 cylinder)

1шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal

1шт.

Part of O-ring and Seal Service Kit, P/N 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

1шт.

Part of O-ring and Seal Service Kit, P/N 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

Part of O-ring and Seal Service Kit, P/N 63884C92

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of O-ring and Seal Service Kit, P/N 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

2шт.

Part of O-ring and Seal Service Kit, P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - o-ring and seal, Includes: Ref. 4, 5, 8, 9, 10, 12, and 13

1шт.
