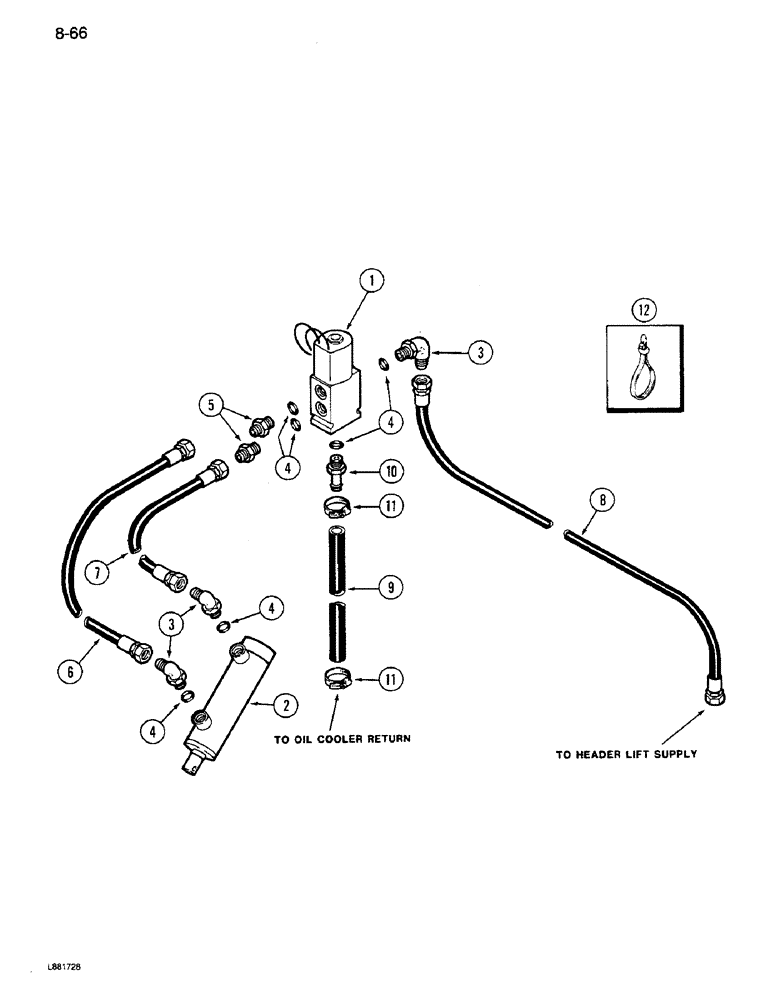

Запчасти Case IH 1640 (8-66) - SEPARATOR CLUTCH SYSTEM, MODULAR CONTROLS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-72)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Figure 8-76)

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 thread

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 thread

2шт.

6

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Separator Clutch 0.31" ID x 20.00", SAE 100R1

1шт.

7

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE ASSEMBLY - separator clutch, 3/8 ID x 17 inch

1шт.

8

178961C1

HOSE,7.9 mm ID x 1270.00 mm, SAE 100R1

- Separator Clutch 7.9 mm ID x 1270.00 mm, SAE 100R1

1шт.

8

1285380C2

HYDRAULIC HOSE

HOSE - separator clutch, 3/8 ID x 50 inch

1шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 3/8 ID x 22 inch (Order 180730C1, Serial Range: cut-length)

1шт.

10

178036C1

CONNECTOR, ELEC

FITTING - beaded tube, 3/8 inch ID hose

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

12

702093C1

CABLE TIE

STRAP - nylon tie

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.
