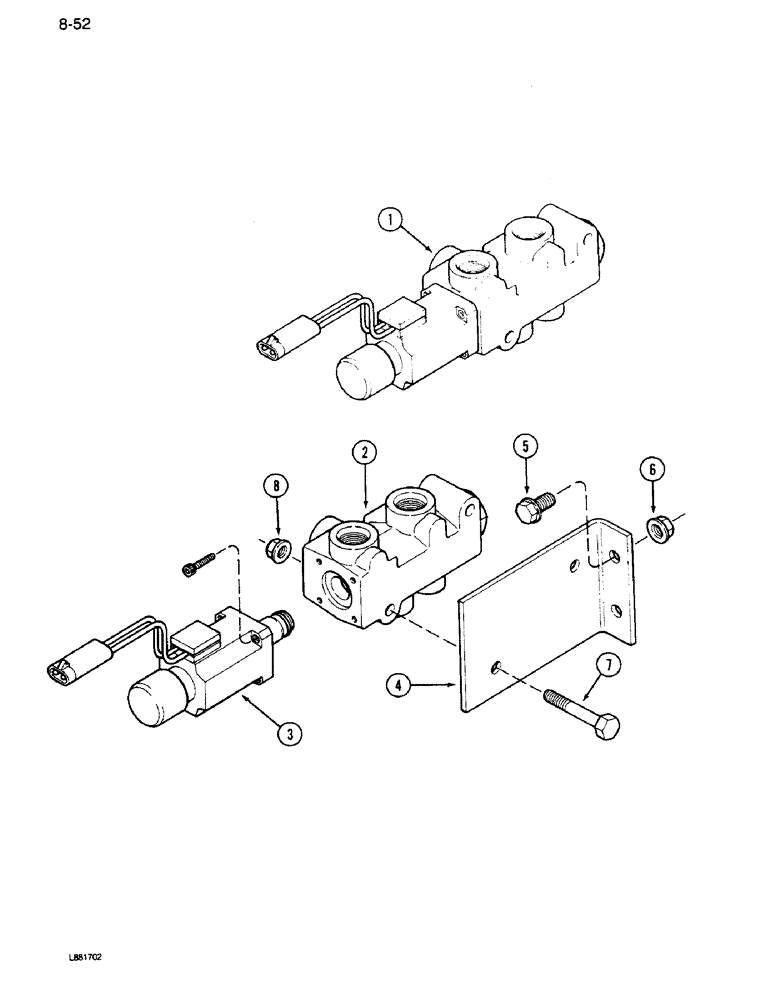

Запчасти Case IH 1640 (8-52) - REEL DRIVE, VALVE ASSEMBLY (07) - HYDRAULICS

1

1272619C92

VALVE

ASSEMBLY - reel drive, Includes: Ref. 2, 3 and small parts, and manual override kits

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1272619C92)

1шт.

3

92669C1

SWITCH

SOLENOID - switch

1шт.

92670C1

KIT

- manual override

1шт.

92671C1

KIT

- small parts

1шт.

4

1322417C2

SUPPORT

- valve

1шт.

5

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

7

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.
