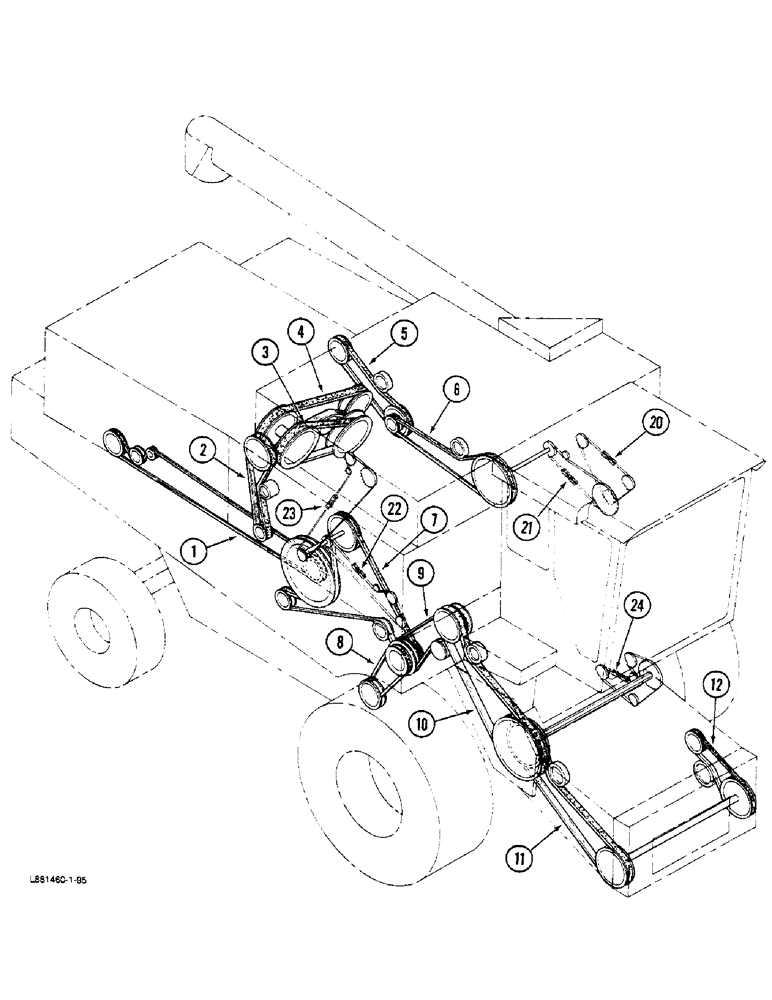

Запчасти Case IH 1640 (1-12) - PICTORIAL INDEX, BELTS (00) - PICTORIAL INDEX

1

Straw Spreader Drive Belt, Page 9F-3

1шт.

2

Straw Chopper Drive Belt, Page 9F-11

1шт.

3

Rotor Drive Belt, Page 9B-5

1шт.

4

Separator Drive Belt, 9A-15

1шт.

5

Auxiliary Pump Drive Belt, Page 8-23

1шт.

6

Grain Tank Unloader Drive Belt, Page 9E-13

1шт.

7

Elevator Drive Belt, Page 9A-5

1шт.

8

Cleaning Fan Drive Belt, Page 9C-11

1шт.

9

Fan Jackshaft Drive Belt, Page 9A-3

1шт.

10

Feeder Drive Belt, Page 9A-23

1шт.

11

Feeder Jackshaft Drive Belt, Page 9A-25

1шт.

12

Reel Pump Drive Belt, Page 8-55

1шт.

20

Grain Tank Unloader Drive Chain, Page 9E-17

1шт.

21

Grain Tank Unloader Drive Chain, Page 9E-17

1шт.

22

Tailings Elevator Drive Chain, Page 9D-23

1шт.

23

Grain Elevator Drive Chain, Page 9D-13

1шт.

24

Feeder Reverser Drive Chain, Page 9A-43, 45

1шт.
