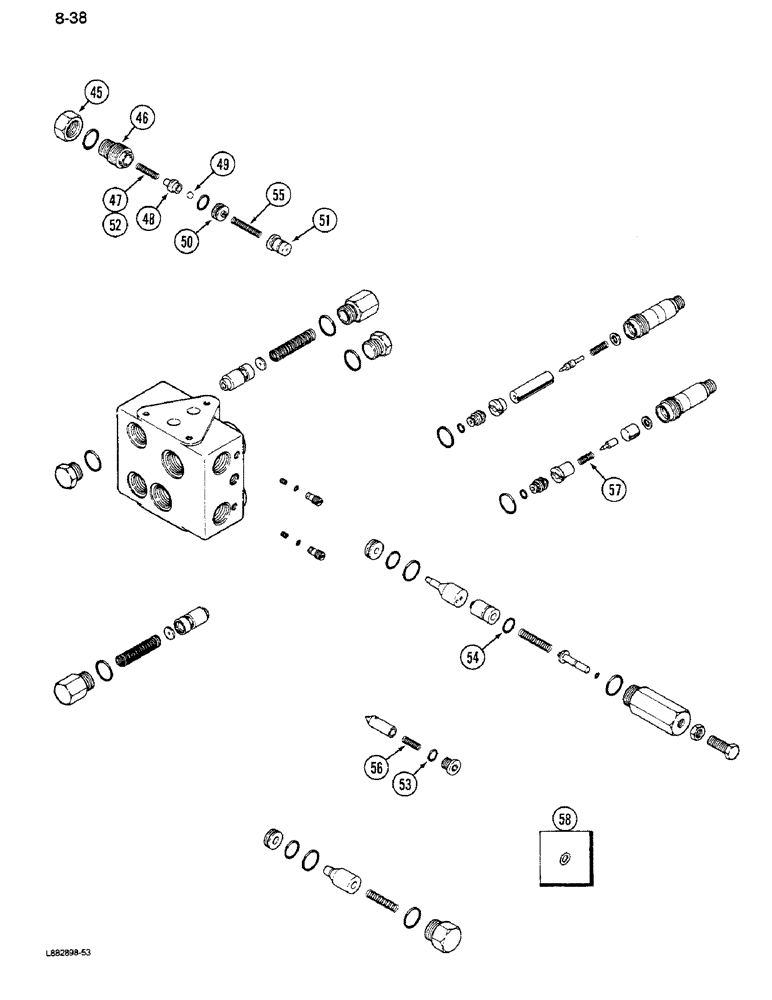

Запчасти Case IH 1640 (8-38) - HEADER VALVE ASSEMBLY, (CONT) (07) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - header, continued, Includes: Ref. 45 - 57 and 2 - 44 on Fig. 8-36

1шт.

45

1301674C1

NUT

- hex, 1 inch (Use 1 with 1954161C1)

2шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - retaining (Use 1 with 1954161C1)

2шт.

47

1272403C1

SPRING

- plug (Use with 1267033C92 only)

1шт.

48

1301677C1

PIN

GUIDE - spring (Use 1 with 1954161C1)

2шт.

49

211-206

BALL,1/4" Dia

- metal, 1/4 inch, Grade 25 (Use 1 with 1954161C1)

2шт.

50

1301654C1

NUT

ORIFICE - valve (Use 1 with 1954161C1)

2шт.

51

1301678C1

VALVE

POPPET - valve (Use 1 with 1954161C1)

2шт.

52

1301636C1

SPRING

- plug

1шт.

53

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

Part of O-ring and Seal Repair Kit, P/N 1282279C1

1шт.

54

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 inch

1шт.

Part of O-ring and Seal Repair Kit, P/N 1282279C1

1шт.

55

1301679C1

SPRING

- orifice (Use 1 with 1954161C1)

2шт.

56

1301729C1

SPRING

- plug

1шт.

57

1301821C1

SPRING

- bushing

1шт.

530575R91

SHIM KIT

KIT - relief valve shim, Includes shims

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.005 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.007 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.020 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHiM - relief valve 0.042 inch

1шт.

1282279C1

SEAL KIT

KIT - o-ring seal repair, Includes: Ref. 53 and 54 on Figures 8-36 and 8-38

1шт.
