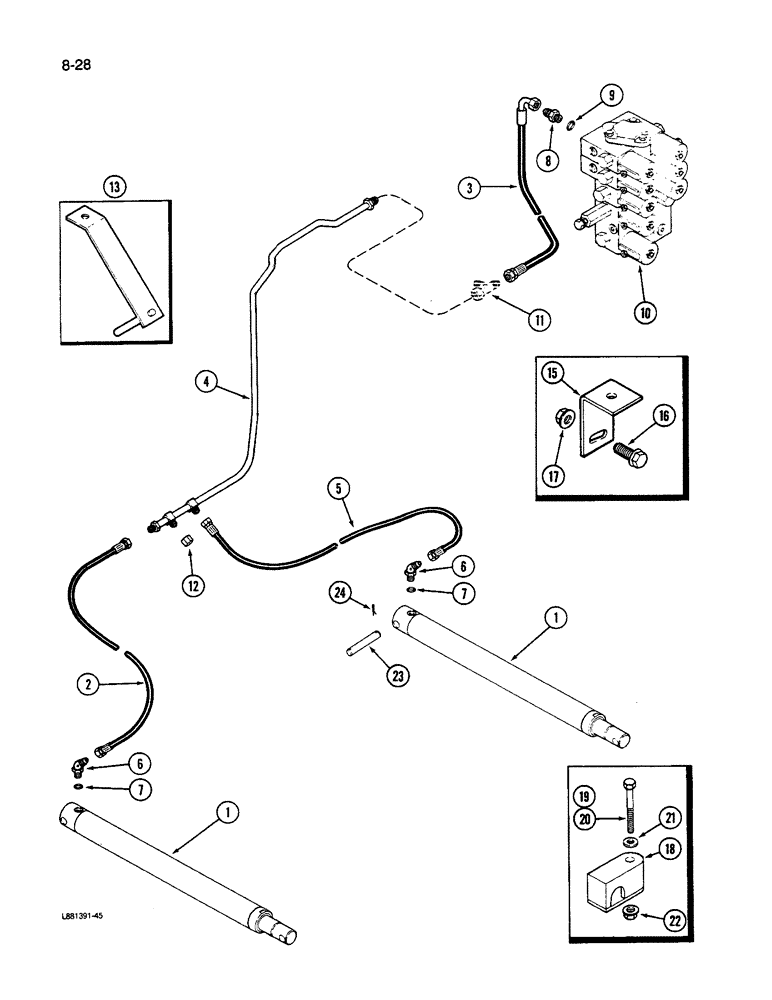

Запчасти Case IH 1640 (8-28) - HEADER LIFT CYLINDER SYSTEM, WITHOUT THIRD LIFT CYLINDER ATTACHMENT (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CYLINDER ASSEMBLY - header lift (See Figure 8-30)
2шт.
2
1345116C1
HOSE
- header lift cylinder, 39 inch
1шт.
2
1310709C1
HOSE
- header lift cylinder, 45 inch
1шт.
3
90875C1
HYDRAULIC HOSE
HOSE - hydraulic, 29 inch long (Replaces 1310862C1)
1шт.
4
1979996C2
HYD TUBE
TUBE - header lift cylinder (Replaces 1321493C2)
1шт.
5
1345115C1
HOSE
- header lift cylinder, 27 inch
2шт.
5
144140C1
HOSE,9.53mm ID x 787.4mm L, SAE 100R1
- header lift cylinder, 31 inch
1шт.
6
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 45 degree adjustable, 3/4-16 thread
2шт.
7
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube
2шт.
8
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR - short, 7/8-14 thread
1шт.
9
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 5/8 inch O.D. tube
1шт.
10
REF
INSTRUCTION
VALVE ASSEMBLY - control (See Figure 8-36)
1шт.
11
REF
INSTRUCTION
TEE - used with accumuiator attachment (See Figure 8-78)
1шт.
13
173143C2
SUPPORT
- header lift hose
1шт.
15
176394C1
ANGLE
- header lift tubes
1шт.
16
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
- hex flanged lock, 5/16 NC x 3/4 inch
1шт.
17
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flanged lock, 5/16 inch NC
1шт.
18
183822C1
CLAMP
- header lift tube
3шт.
19
113-5
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
Hex, 1/4"- 20 x 1 1/2", G5
2шт.
20
113-15
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
- hex, 1/4 NC x 2-1/4 inch
1шт.
21
25707R1
WASHER,.281" x 5/8" x .075", HDN
- flat, 9/32 x 5/8 x 3/64 inch
3шт.
22
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
- hex flanged lock, 1/4 inch NC
3шт.
23
573762R1
PIN,25.4mm OD x 130.97mm L
- cylinder retaining
4шт.
24
132-313
COTTER PIN,1/4" x 2"
PIN, Split (Cotter), 1/4" x 2"
4шт.
Выбрано товаров: 25
