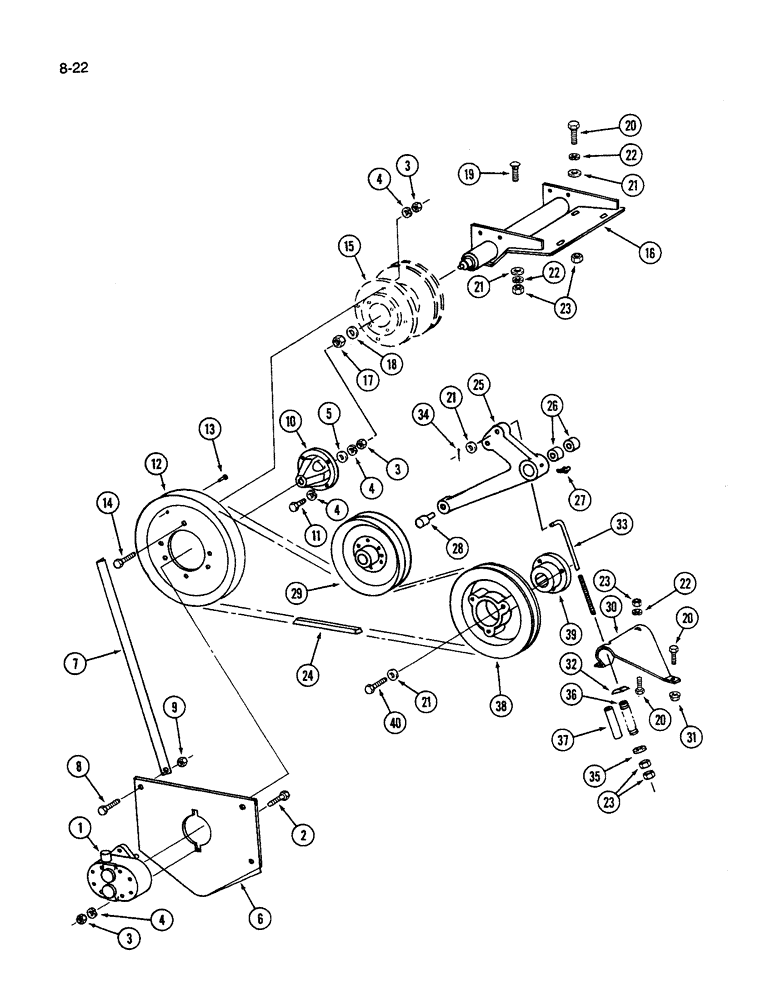

Запчасти Case IH 1640 (8-22) - AUXILIARY HYDRAULIC PUMP MOUNTING (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic pump mounting lift (See Figure 8-24)

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

4

492-11038

LOCK WASHER,3/8"

11шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

6

192958C4

PLATE

- hydraulic pump

1шт.

7

192957C2

SUPPORT

BRACKET - pump plate

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch

2шт.

10

191207C1

HUB

- hydraulic pump

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

192943C1

PULLEY ASSY.

PULLEY ASSEMBLY - pump driven, 1 1-21/32 inch O.D., Includes: Ref. 13

1шт.

13

47-410

RIVET,FH, 1/4" x 5/8"

- solid flat head, 1/4 x 5/8 inch

24шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

192945C91

PULLEY ASSY.

PULLEY ASSEMBLY - unloader drive

1шт.

16

181338C1

SUPPORT ASSY.

BRACKET - auxiliary drive rear

1шт.

17

131-1215

LOCK NUT,5/16"-18, GC

NUT - hex lock, 3/4 inch

1шт.

18

21211R1

WASHER

- flat, 25/32 x 1-1/2 x 5/32 inch

1шт.

19

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

21

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

10шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

24

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Pump drive 0.879" W x 96.11" L

1шт.

25

192946C92

LEVER ASSY.

LEVER ASSEMBLY - pump idler pulley, Includes: Ref. 26

1шт.

26

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

- lever

2шт.

27

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - 45 degree self tapping, 1/4-28 inch

1шт.

28

274844R91

BEARING ASSY,30mm OD x 73.66mm L

- idler pulley

1шт.

29

192865C1

PULLEY

- idler, 8 inch O.D.

1шт.

30

192092C1

SUPPORT

- pump drive pivot

1шт.

31

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

32

194652C1

PIVOT

BAR - drive pivot

1шт.

33

182752C1

ROD

- auxiliary drive jackshaft

1шт.

34

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

35

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

36

V368

SPRING

- drive rod

1шт.

37

181119C1

SPACER

- drive rod

1шт.

38

196481C1

PULLEY

- pump drive, 9-1/4 inch O.D.

1шт.

39

196482C2

HUB

- drive pulley

1шт.

40

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, Grade 8

3шт.
