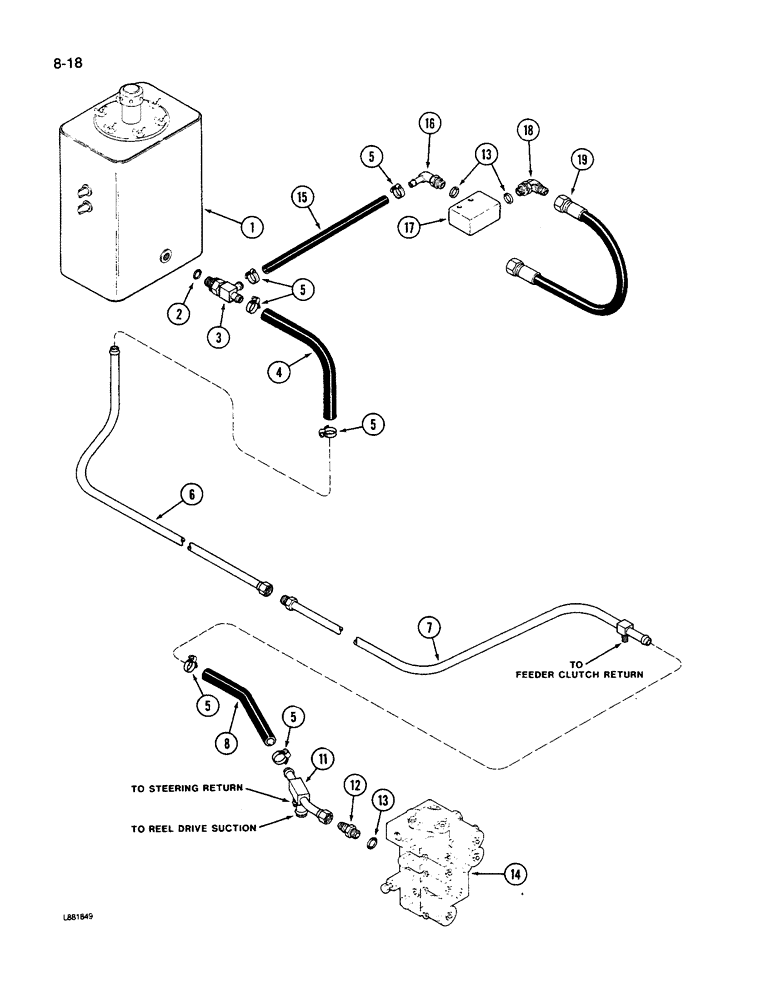

Запчасти Case IH 1640 (8-18) - HEADER LIFT RETURN SYSTEM, P.I.N. JJC0034001 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-2)

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

172059C1

TEE

ASSEMBLY - adjustable

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - oil, 3/4 ID x 18 inch (Order 180720C1, Serial Range: cut-length)

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

6шт.

6

196743C2

HYD TUBE

TUBE ASSEMBLY - header lift return, rear

1шт.

7

196744C1

HYD TUBE

TUBE ASSEMBLY - header lift return, front

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - oil, 3/4 ID x 7 inch (Order 180720C1, Serial Range: cut-length)

1шт.

11

1310757C1

TUBE

ASSEMBLY - header lift and steering return

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - short, 1-1/16-12 x 7/8-14 thread

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube

3шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-32)

1шт.

15

1957369C1

HYDRAULIC HOSE,15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

Return, Relief Valve 15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

1шт.

16

1321659C1

ELBOW,90 Degree, 7/8"-14 O-Ring x 5/8" Barb end

ASSEMBLY - 90 degree adjustable

1шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Figure 8-20)

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread

1шт.

19

156436H1

HYDRAULIC HOSE,0.50" ID x 20.00", SAE 100R1 Class 7

Pressure, Relief Valve (Replaces 1957328C1, Tube) 0.50" ID x 20.00", SAE 100R1 Class 7

1шт.
