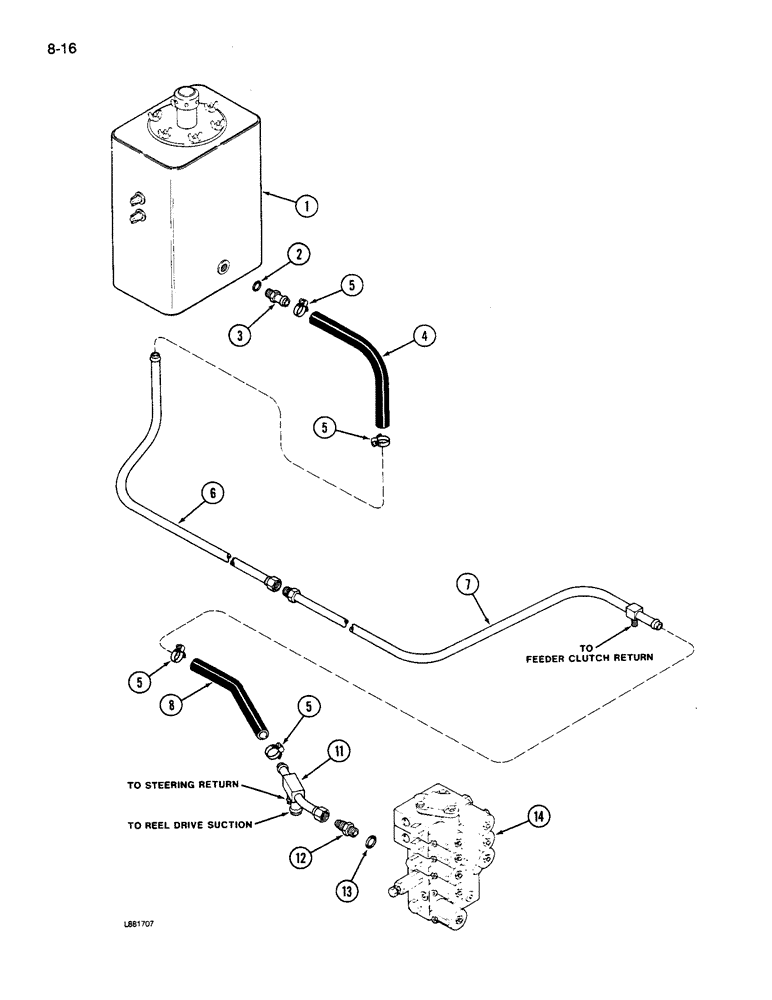

Запчасти Case IH 1640 (8-16) - HEADER LIFT RETURN SYSTEM, PRIOR TO P.I.N. JJC0034001 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-2)

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube

1шт.

3

470420R11

FITTING

CONNECTOR - 3/4 tube 1-1/16-12 thread x 3/4 inch

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - oil, 3/4 inch ID x 18 inch (Order 180720C1, Serial Range: cut-length)

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12 Type F

4шт.

6

196743C2

HYD TUBE

TUBE ASSEMBLY - headcr lift return, rear

1шт.

7

196744C1

HYD TUBE

TUBE ASSEMBLY - header lift return, front

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - oil, 3/4 inch ID x 7 inch (Order 180720C1, Serial Range: cut-length)

1шт.

11

1310757C1

TUBE

ASSEMBLY - header lift and steering return

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - short, 3/4 tube 1-1/16-12 thread x 5/8 inch 7/8-14 thread

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-32)

1шт.
