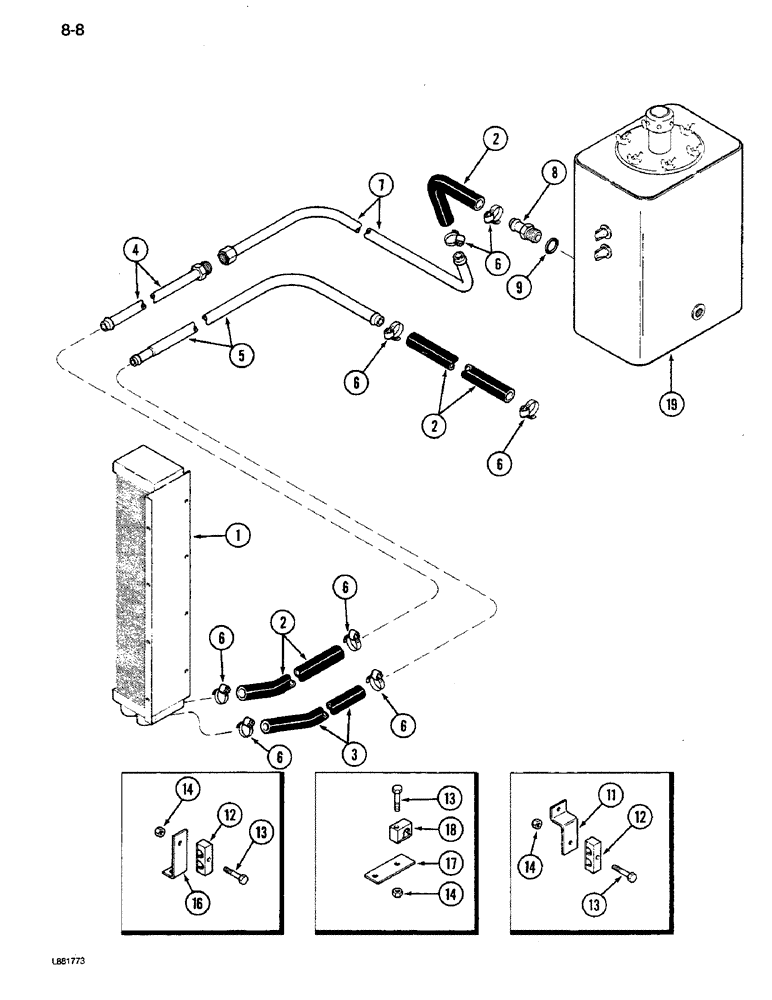

Запчасти Case IH 1640 (8-08) - OIL COOLER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

COOLER ASSEMBLY - oil (See Figure 8-10)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - oil, 3/4 inch ID x 18 inch (Order 180720C1, Serial Range: cut-length)

3шт.

3

NSS

NOT SOLD SEPARAT

HOSE - oil, 5/8 inch ID x 18 inch (Order S118576, Serial Range: cut-length)

1шт.

4

183830C1

HYD TUBE

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

5

183831C2

HYD TUBE,0.75" OD

TUBE ASSEMBLY - oil cooler to hydrostatic pump

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

8шт.

7

196762C1

HYD TUBE

TUBE ASSEMBLY - reservoir to oil cooler

1шт.

8

470420R11

FITTING

CONNECTOR - system return

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube

1шт.

11

196517C1

SUPPORT TUBE

SUPPORT - oil cooler tube

1шт.

12

183826C1

CLAMP

- oil cooler tube

2шт.

13

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

14

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4 inch NC

3шт.

16

183829C1

BRACKET

SUPPORT - oil cooler tube

1шт.

17

1338281C1

BRACKET

BAR - cooler to reservoir support (Replaces 196868C1)

1шт.

18

183823C1

CLAMP

- cooler to reservoir tube

1шт.

19

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil (See Figure 8-2)

1шт.
