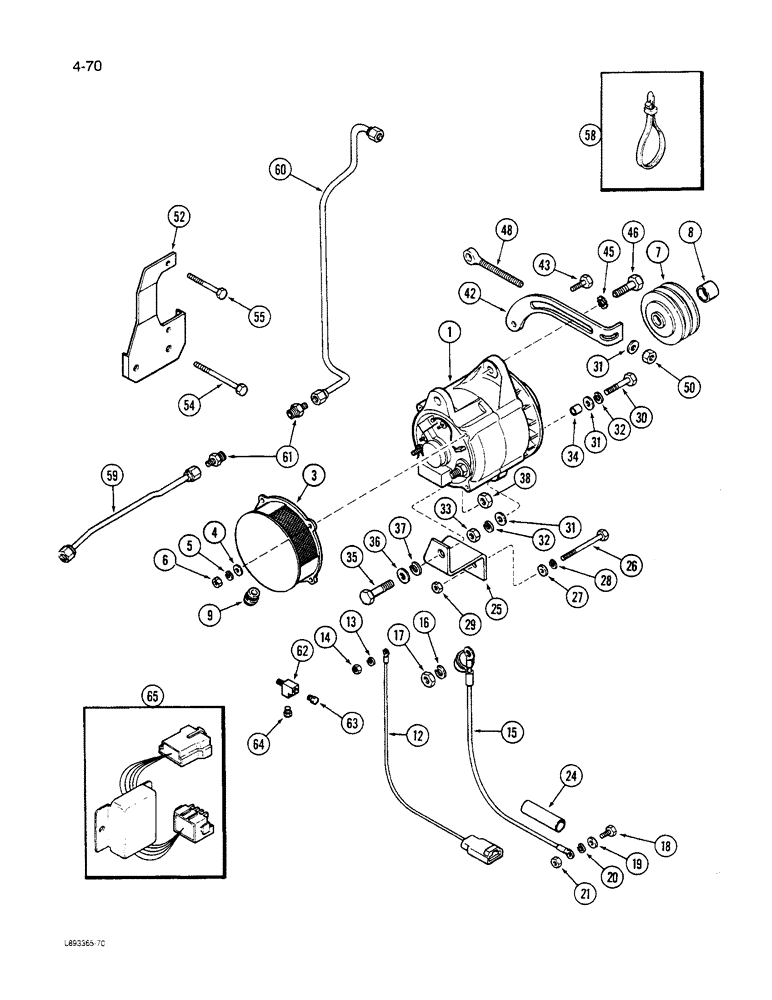

Запчасти Case IH 1640 (4-70) - ALTERNATOR CONVERSION KIT, MOTOROLA TO BOSCH (06) - ELECTRICAL

1

REF

INSTRUCTION

ALTERNATOR - engine, 110 ampere (See Figure 4-72)

1шт.

1979358C1

SPARE PART SET

KIT - alternator conversion, Includes: Ref. 3 - 65

1шт.

3

1979062C2

COVER ASSY

SHIELD - alternator dust cover

1шт.

4

495-31035

WASHER - flat, 1/4 x 9/16 x 1/16 inch

4шт.

5

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

6

825-1405

NUT,M5, Cl 8

- hex, 5 mm, Grade 10

4шт.

7

1977060C1

PULLEY

- alternator

1шт.

8

1982256C1

SPACER

- pulley

1шт.

9

195804C1

GROMMET

- 1/2 inch

1шт.

12

1977185C1

HARNESS

- alternator, D+ terminal

1шт.

13

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

14

825-1404

NUT,M4, Cl 8

1шт.

15

1977135C1

HARNESS

- alternator output B+ terminal

1шт.

16

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

17

425-147

JAM NUT,Jam, 7/16"-14, G5

- hex jam, 7/16 inch NC

1шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

24

1979151C1

TUBE,19 mm ID, 75 mm Length

- heat shrink

1шт.

25

1977053C1

SUPPORT ASSY.

SUPPORT - alternator rear

1шт.

26

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

1шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

30

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

31

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat 13/32 x 13/16 x 1/16 inch

6шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

429-106

NUT,3/8"-16, G8

- hex, 3/8 NC, grade 8

1шт.

34

1977054C1

BUSHING

- alternator, 10 x 13 x 13 mm

1шт.

35

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch, Grade 8

1шт.

36

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

38

429-108

NUT,1/2"-13, G8

- hex, 1/2 NC, grade 8

1шт.

42

1979235C1

SUPPORT ASSY.

BRACE - alternator adjusting

1шт.

43

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

45

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - external-internal lock, 3/8 inch

1шт.

46

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, Grade 8

1шт.

48

1979226C1

BOLT (SPREADER)

EYEBOLT - alternator belt adjusting

1шт.

50

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

52

1977128C2

SUPPORT

BRACKET - coolant filter support

1шт.

54

28419R1

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, Grade 8

2шт.

55

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

58

702093C1

CABLE TIE

STRAP - nylon retaining

5шт.

59

1977129C1

TUBE

- coolant, lower

1шт.

60

1979156C1

TUBE

- coolant, upper

1шт.

61

333773R1

CONNECTOR, ELEC

CONNECTOR - straight, 3/8 PT x 5/8-24 thread

2шт.

62

1977130C1

TEE

- reducing special

1шт.

63

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8-27 inch thread

1шт.

64

20990R1

PLUG

- hex head pipe, 3/8-18 inch thread

1шт.

65

187609C2

RECTIFIER

ASSEMBLY - diode

1шт.
