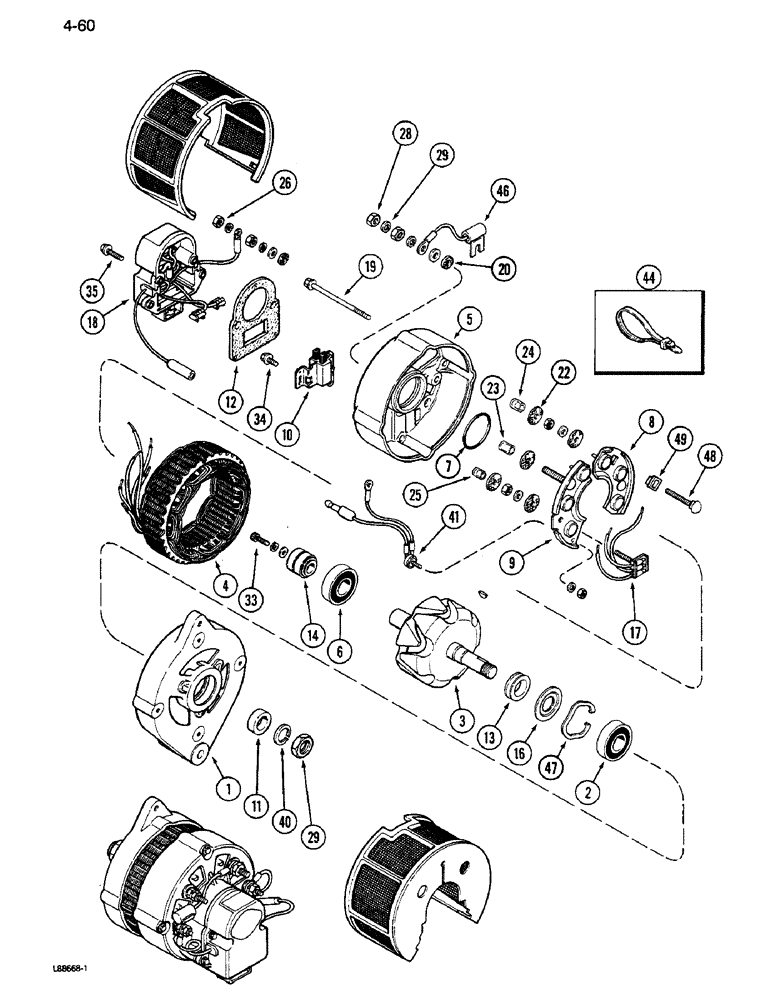

Запчасти Case IH 1640 (4-60) - ALTERNATOR GENERATOR, 90 AMPERE MOTOROLA (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
245713C93
ALTERNATOR
ALTERNATOR GENERATOR ASSEMBLY - 90 ampere, Includes: Ref. 1 - 49
1шт.
A163085GV
ALTERNATOR
Value, 12V, 105A
1шт.
103807A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 Volt 105 Ampere
1шт.
103807A1C
CORE-ALTERNATOR
Return Part Number
1шт.
125849A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 Volt 135 Ampere
1шт.
125849A1C
CORE-ALTERNATOR
Return Part Number
1шт.
1
91533C1
HOUSING
HOUSING - front
1шт.
2
76675C91
BALL BEARING,0.6693" ID x 1.5748" OD x 1.724"
BEARING - front
1шт.
3
91534C1
ROTOR
ROTOR ASSEMBLY
1шт.
4
91535C1
STATOR
STATOR ASSEMBLY
1шт.
5
91536C1
HOUSING
HOUSING - rear
1шт.
6
76675C91
BALL BEARING,0.6693" ID x 1.5748" OD x 1.724"
BEARING - rear
1шт.
7
91537C1
RETAINER
RETAINER - rear bearing
1шт.
8
91538C1
RECTIFIER
RECTIFIER - diode negative
1шт.
9
91539C1
RECTIFIER
RECTIFIER - diode positive
1шт.
10
91540C1
BRACKET
BRUSH ASSEMBLY
1шт.
11
91541C2
SPACER
SPACER - fan
1шт.
12
91542C1
GASKET
GASKET - regulator
1шт.
13
91543C1
RING
RING - V
1шт.
14
A44581
RING
RING ASSEMBLY - slip
1шт.
91544C1
SPACER
SPACER - (Not Shown)
1шт.
16
91545C1
SEALING RING
RING - seal
1шт.
17
A49690
RECTIFIER
RECTIFIER - diode field
1шт.
18
91547C1
REGULATOR
REGULATOR - voltage
1шт.
19
91548C1
BOLT
BOLT - through
2шт.
20
91549C1
WASHER
WASHER - 1/4 x 3/4 inch
1шт.
91550C1
SLEEVE
SLEEVE - plastic, No. 10 x 19/32 inch (Not Shown)
1шт.
22
450145C1
WASHER
WASHER - No. 10 x 3/4 inch
1шт.
23
91551C1
INSULATOR
INSULATOR - sleeve, 1/4 x 1/2 inch
1шт.
24
91552C1
INSULATOR
INSULATOR - sleeve, No. 10 x 1/2 inch
1шт.
25
91553C1
INSULATOR
INSULATOR - 3/4 x 1/16 x 17/64 inch
1шт.
26
91554C1
NUT
NUT - hex, No. 10-24
1шт.
91555C1
NUT
NUT - hex lock, No. 10-24 (Not Shown)
1шт.
28
91556C1
NUT
NUT - hex, 1/4 inch
1шт.
29
91557C1
NUT
NUT - hex, 5/8 inch
1шт.
91558C1
NUT
NUT - hex (Not Shown)
1шт.
91559C1
NUT
NUT - square, No. 10-32 (Not Shown)
1шт.
120614
NUT,Hex, #10 - 32
NUT, , Not shown #10-32
1шт.
33
91561C1
SCREW,Hex, 5/8" - 10 x 32"
SCREW - No. 10-32 x 5/8 inch
1шт.
34
91562C1
SELF-TAP SCREW,Hex, 8"-20 x 1/2"
SCREW - tapping, No. 8 x 1/2 inch
1шт.
35
91563C1
SELF-TAP SCREW,8" x 3/4"
SCREW - tapping, No. 8 x 3/4 inch
1шт.
91564C1
WASHER
WASHER - No. 10 x 7/16 inch (Not Shown)
1шт.
91565C1
WASHER
WASHER - No. 10 x 5/16 inch (Not Shown)
1шт.
91566C1
LOCK WASHER
WASHER - lock (Not Shown)
1шт.
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, (Not Shown) 1/4"
1шт.
40
91568C1
LOCK WASHER
WASHER - lock, 5/8 inch
1шт.
41
91569C1
SWITCH
SWITCH - thermal
1шт.
91570C1
BRACKET
BRACKET - identification (Not Shown)
1шт.
91571C1
INSULATOR
INSULATOR - armite (Not Shown)
1шт.
44
869707C1
STRAP,368.3mm L
STRAP - nylon
1шт.
91573C1
CONNECTOR, ELEC
CONNECTOR CONNECTOR - sleeve (Not Shown)
1шт.
46
91574C1
CAPACITOR
CAPACITOR
1шт.
47
A43394
RETAINER
RETAINER - front bearing
1шт.
48
91935C1
BOLT
BOLT - round head square neck, No. 10-24 x 1/2 inch
1шт.
49
91936C1
INSULATOR
INSULATOR - molded square
1шт.
Выбрано товаров: 55
