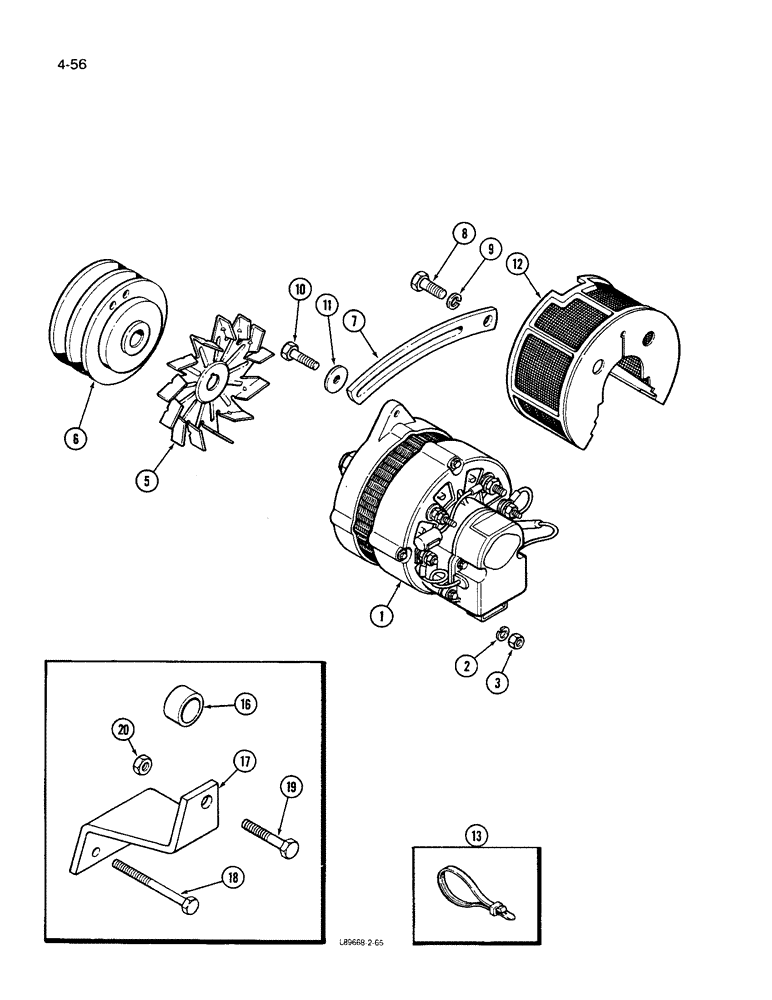

Запчасти Case IH 1640 (4-56) - ALTERNATOR GENERATOR MOUNTING (06) - ELECTRICAL

1

REF

INSTRUCTION

ALTERNATOR GENERATOR - 90 ampere, motorola (See Figure 4-60)

1шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

3

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch

1шт.

5

221425R1

FAN

- alternator generator

1шт.

6

1977060C2

PULLEY

- drive, alternator (Replaces 131042C1 is still available has smaller IS than 1977060c2)

1шт.

7

1977052C2

BRACE

BRACKET - alternator adjusting (Replaces 532418R1)

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

1014921C1

BOLT

BOLT - hex, M8 x 30 mm, Class 8.8

1шт.

11

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch (Alternate with 30183R1)

1шт.

11

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- flat, 8/8 x 21 x 2.5 mm (Alternate with 21496R1)

1шт.

12

1979062C2

COVER ASSY

SHIELD - alternator dust cover (Replaces 245165C1)

1шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - shield 14 in

1шт.

16

1982256C1

SPACER

- pulley

1шт.

17

1977053C1

SUPPORT ASSY.

SUPPORT - alternator rear

1шт.

18

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

1шт.
