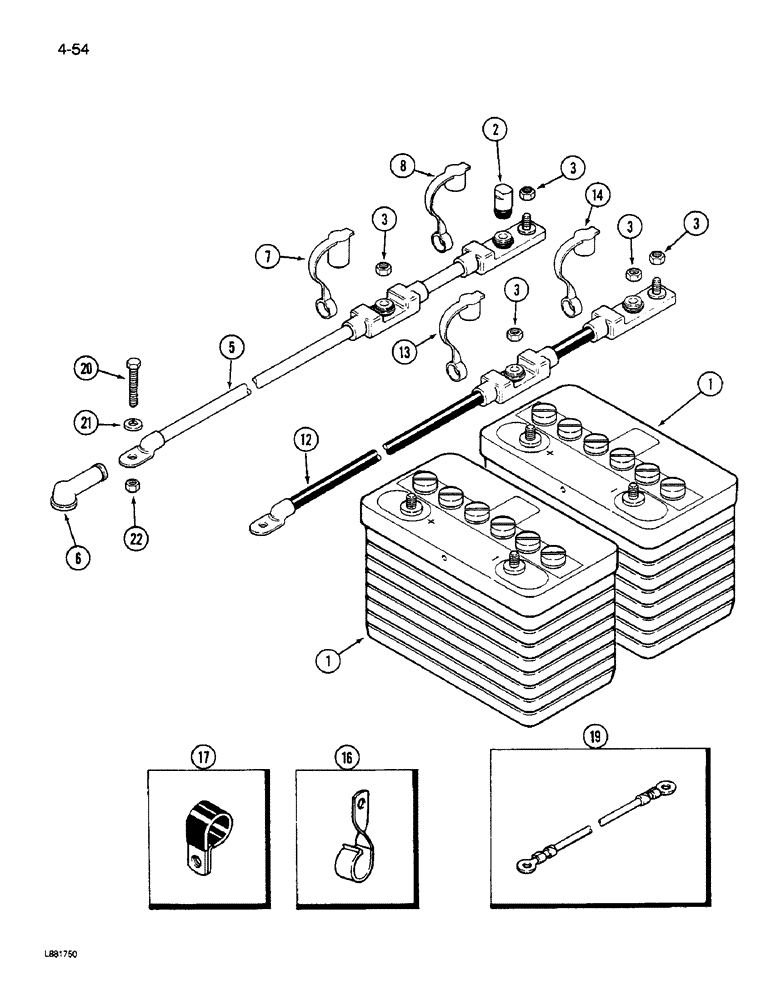

Запчасти Case IH 1640 (4-54) - BATTERY AND BATTERY CABLE (06) - ELECTRICAL

1

BMF28S

BATTERY, DRY

BATTERY - dry charged, 12 volt

2шт.

2

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

- jump start

1шт.

3

476074C1

NUT

- pretailing torque lock hex, 3/8 inch NC

5шт.

5

245225C3

CABLE

ASSEMBLY - battery, positive, Includes: Ref. 6 - 8

1шт.

6

364910R1

BOOT

- battery cable

1шт.

7

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

8

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

12

245226C2

CABLE PULLING GRIP

CABLE - battery, ground, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

14

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

16

363660R1

CLIP

- battery positive cable

1шт.

17

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

CLIP - battery positive cable

1шт.

19

158477C91

CABLE

ASSEMBLY - engine to combine ground

1шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
