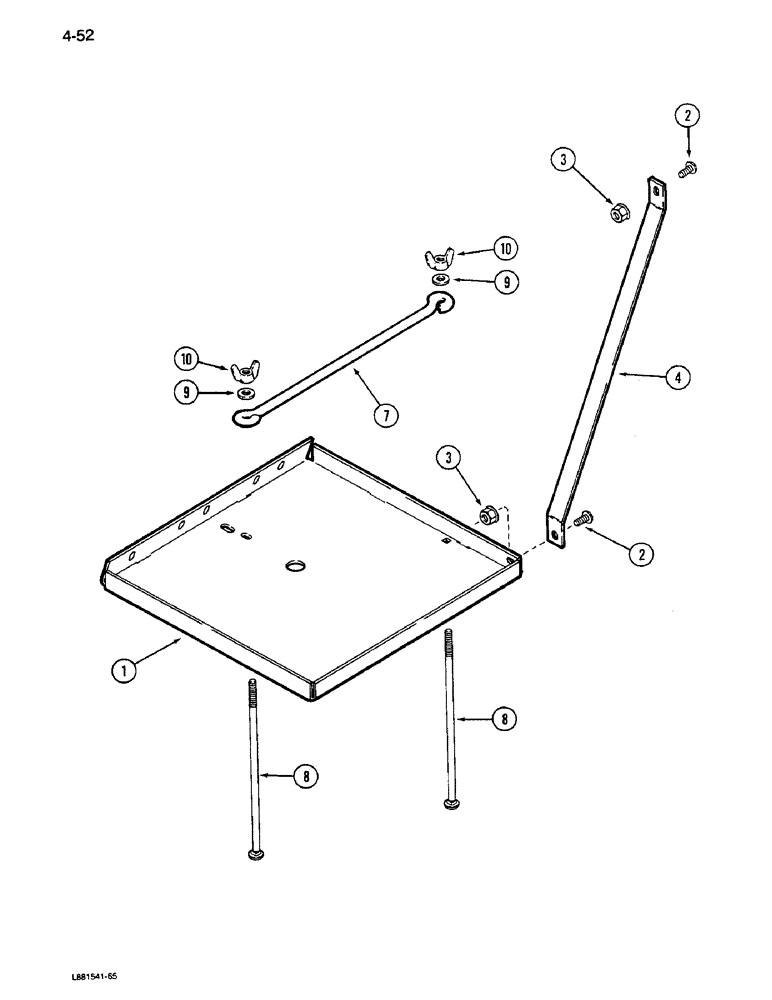

Запчасти Case IH 1640 (4-52) - BATTERY TRAY (06) - ELECTRICAL

1

194267C5

TRAY

- battery

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

4

194266C1

SUPPORT

- battery tray

1шт.

7

188116C1

CLAMP

- battery hold down

1шт.

8

111-252

CARRIAGE BOLT,Short NK, 5/16"-18 x 9 1/2", G2

BOLT - round head square neck, 5/16 NC x 9-1/2 inch

2шт.

9

28588R1

WASHER

- flat, 11/32 x 11/16 x 1/16 inch

2шт.

10

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.
