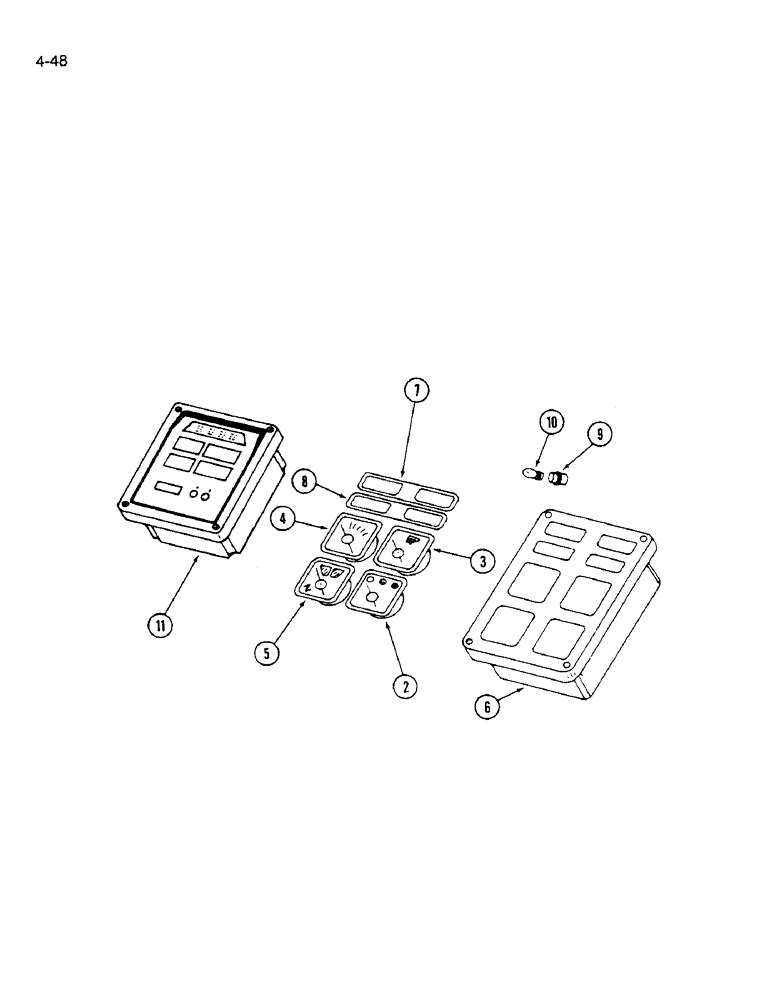

Запчасти Case IH 1640 (4-48) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

198067C91

ELECTRICAL GAUGE

CLUSTER ASSEMBLY - instrument gauges, Includes: Ref. 2 - 10

1шт.

2

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

VOLTMETER

1шт.

6

121608C1

GASKET

BEZEL AND GASKET ASSEMBLY

1шт.

7

187596C1

LENS

LENS - warning light oil pressure, brake, temperature, ampere

1шт.

8

187597C1

LENS

LENS - warning light shaker elevator

1шт.

9

121611C1

SOCKET

SOCKET ASSEMBLY - instrument cluster

8шт.

10

W10478

LAMP

LAMP - Type C-2F, No. 194

8шт.

445357

SPRING NUT,J, #10-16

NUT - hex, No. 10-12

4шт.

27204R1

SELF-TAP SCREW

SCREW - tapping, No. 10-16 x 3/4 inch

4шт.

1935068C2

ELECTRICAL GAUGE

TACHOMETER - engine, remanufactured (North America Only)

1шт.

1935067C2

RETURN NUMBER - use this part number to return tachometer for credit

1шт.

11

245249C1

TACHOMETER

TACHOMETER - engine, new (Replaced 245249C2 )

1шт.

1987322C2

TACHOMETER

TACHOMETER

1шт.

1935114C2

REMAN-ELECT GAUGE

Remanufactured Tachometer

1шт.

1935113C2

CORE GAUGE ELECT

Core-Electrical Gauge Return Number, Tachometer

1шт.

27204R1

SELF-TAP SCREW

SCREW - tapping, No. 10-16 x 3/4 inch

4шт.
