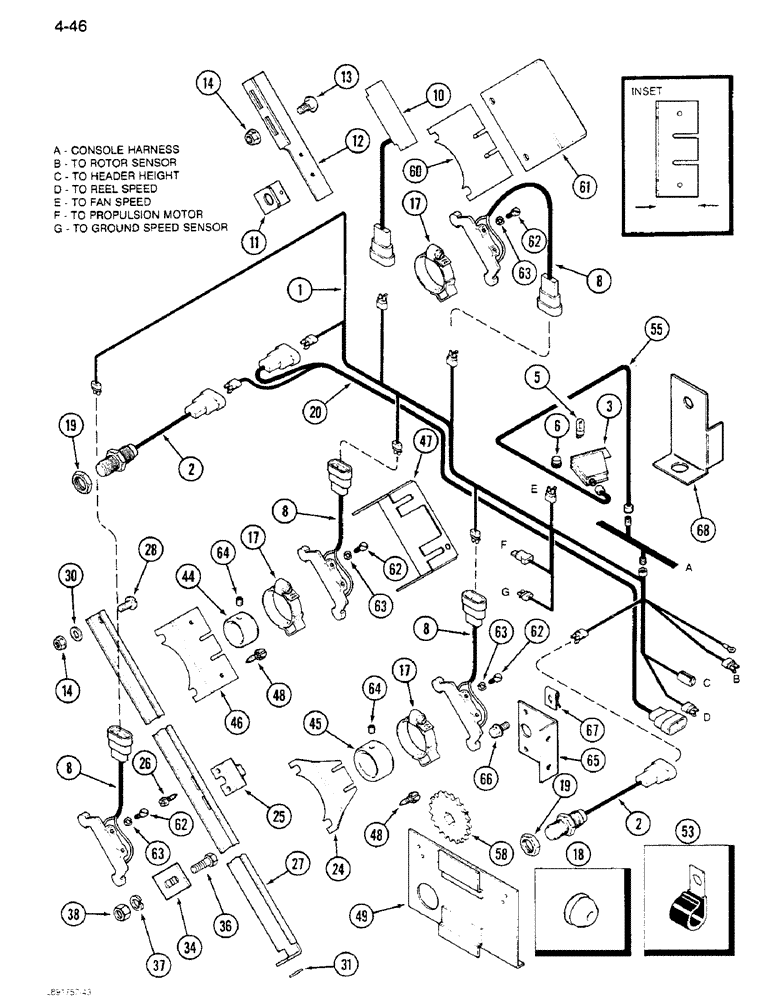

Запчасти Case IH 1640 (4-46) - SHAFT SPEED MONITOR CONTROL, COMBINES WITHOUT STRAW CHOPPER (06) - ELECTRICAL

1

245238C1

HARNESS

HARNESS ASSEMBLY - shaft speed rear

1шт.

2

245193C2

SENSOR

TRANSDUCER - pickup (For straw spreader and feeder)

2шт.

3

245275C91

CASE ASSY.

MONITOR ASSEMBLY - shaft speed, with decal, Includes: Ref. 5 and 6

1шт.

3

1935072C1

REMAN-ELECT MONITOR

1640 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0034705) , shaft speed, with decal, COMBINES W/O STRAW CHOPPER (1/86-12/92)

1шт.

3

1935071C1

CORE-MONITOR

Return Number

1шт.

5

28628R1

BULB,C2F, #73, 14V

LAMP - trade No. 73, 14 volt

1шт.

6

178876C1

SUPPRESSOR

SUPPRESSOR - audible alarm

1шт.

8

245365C1

TRANSMITTER

TRANSMITTER - monitor control (For rotary air screen, tailings auger, clean grain sensor, beater)

4шт.

10

245364C1

SWITCH

SWITCH - monitor control (For shoe)

1шт.

11

187996C1

MAGNET

MAGNET ASSEMBLY - sensor (For shoe)

1шт.

12

187998C2

ANGLE

SUPPORT - shoe transmitter

1шт.

13

111-229

CARRIAGE BOLT,Short NK, 5/16"-18 x 1/2", G2

BOLT - round head square neck, 5/16 NC x 1/2 inch

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

1шт.

17

178800C1

CLAMP

MAGNET ASSEMBLY - sensor (Clean grain, tailings auger, beater)

3шт.

18

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - harness

1шт.

19

84116C1

NUT

NUT - hex jam

2шт.

20

92151C1

HARNESS

HARNESS ASSEMBLY - monitor (Used without straw spreader) (If equipped)

1шт.

24

178795C1

BRACKET

BRACKET - clean grain sensor

1шт.

25

196987C1

MAGNET

MAGNET ASSEMBLY - sensor (For rotary air screen)

1шт.

26

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

2шт.

27

1329865C1

CHANNEL

CHANNEL - rotary air screen sensor mounting

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

3шт.

30

179454C1

RUBBER WASHER

WASHER - rubber

1шт.

31

28588R1

WASHER

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

34

1301560C1

SUPPORT

ANGLE - rotary air screen sensor adjustment

1шт.

36

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

44

178801C1

COLLAR

COLLAR - tailings elevator shaft

1шт.

45

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

COLLAR ASSEMBLY - clean grain auger locking

1шт.

46

183869C2

SUPPORT

BRACKET - tailings sensor, 1-3/4 inch (See Inset)

1шт.

46

187615C2

BRACKET

BRACKET - tailings sensor, 1-5/16 inch (See Inset)

1шт.

47

187616C1

SUPPORT

COVER - tailings sensor bracket

1шт.

48

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

6шт.

49

1979323C1

SHIELD

COVER - clean grain auger sensor (Replaces 187642C2)

1шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness

1шт.

53

362666R1

CLIP

CLIP - harness

1шт.

53

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness

1шт.

55

245242C1

HARNESS

HARNESS ASSEMBLY - shaft speed front

1шт.

58

1317973C2

SPROCKET ASSY.

SPROCKET - feeder sensor (Without rock trap or feeder reverser)

1шт.

60

187629C1

SUPPORT

SUPPORT - beater shaft sensor

1шт.

61

187630C1

SUPPORT

COVER - beater shaft sensor

1шт.

62

436693

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - slotted machine, No. 8-32 x 3/8 inch

4шт.

63

121841

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

64

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

SET SCREW, Hex Soc, 1/4"-20 x 3/8"

2шт.

65

1330063C1

SUPPORT

SUPPORT - feeder sensor (Without rock trap or feeder reverser)

1шт.

66

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

BOLT, Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

67

403276R1

NUT

NUT - speed

2шт.

68

1317950C1

SUPPORT

SUPPORT - feeder sensor (With rock trap or feeder reverser)

1шт.
