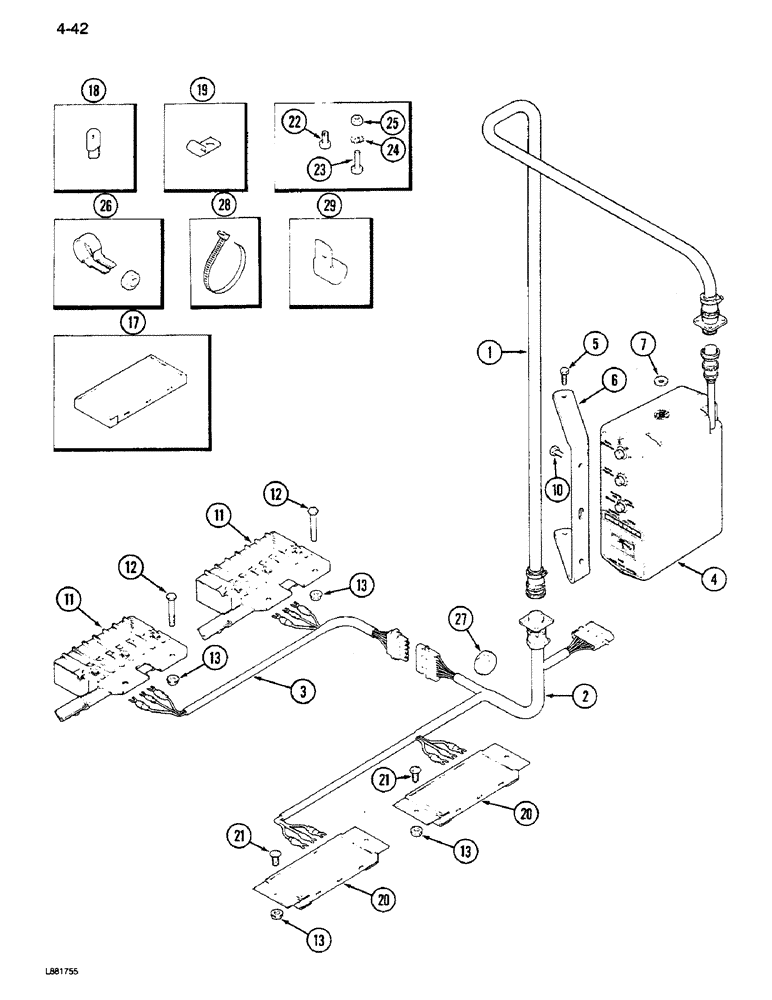

Запчасти Case IH 1640 (4-42) - GRAIN SCAN MONITOR (06) - ELECTRICAL

1

245237C1

HARNESS

ASSEMBLY - cab

1шт.

2

245239C1

HARNESS

ASSEMBLY - main sensor

1шт.

3

245930C2

HARNESS

ASSEMBLY - chaffer sensor, With Chaffer Extension

1шт.

1935074C1

REMAN-ELECT MONITOR

MONITOR - grain scan, remanufactured (North America only)

1шт.

1935073C1

CORE-MONITOR

RETURN NUMBER - use this part number to return monitor for credit

1шт.

4

245360C2

TESTER

MONITOR - grain scan, new

1шт.

5

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch

2шт.

6

1280160C2

SUPPORT

BRACKET - monitor mounting

1шт.

7

179454C1

RUBBER WASHER

- rubber

2шт.

10

25653R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch

2шт.

11

245361C2

TRANSMITTER

BLOCK - chaffer sensor

2шт.

12

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

13

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

8шт.

17

245884C1

TRANSMITTER

BLOCK - grain sensor

1шт.

18

28628R1

BULB,C2F, #73, 14V

LAMP - trade No. 73, 14 volt

1шт.

19

299399C1

CLIP

CLAMP - closed

2шт.

20

245362C1

TRANSMITTER

BLOCK - rotor sensor

2шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREEN - sloted truss head, 5/16 NC x 3/4 inch

4шт.

22

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - No. 10 x 3/8 inch

4шт.

23

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

- machine pan head cross, No. 6 x 5/8 inch

4шт.

24

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER - lock, internal/extenal lock No. 6

4шт.

25

134530

NUT,Hex, #6 - 32

4шт.

26

245738C2

CLAMP

- retaining

1шт.

27

1321767C1

GROMMET

- left side sheet

1шт.

28

702093C1

CABLE TIE

STRAP - tie

1шт.

29

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - harness

8шт.

29

363660R1

CLIP

- harness

1шт.
