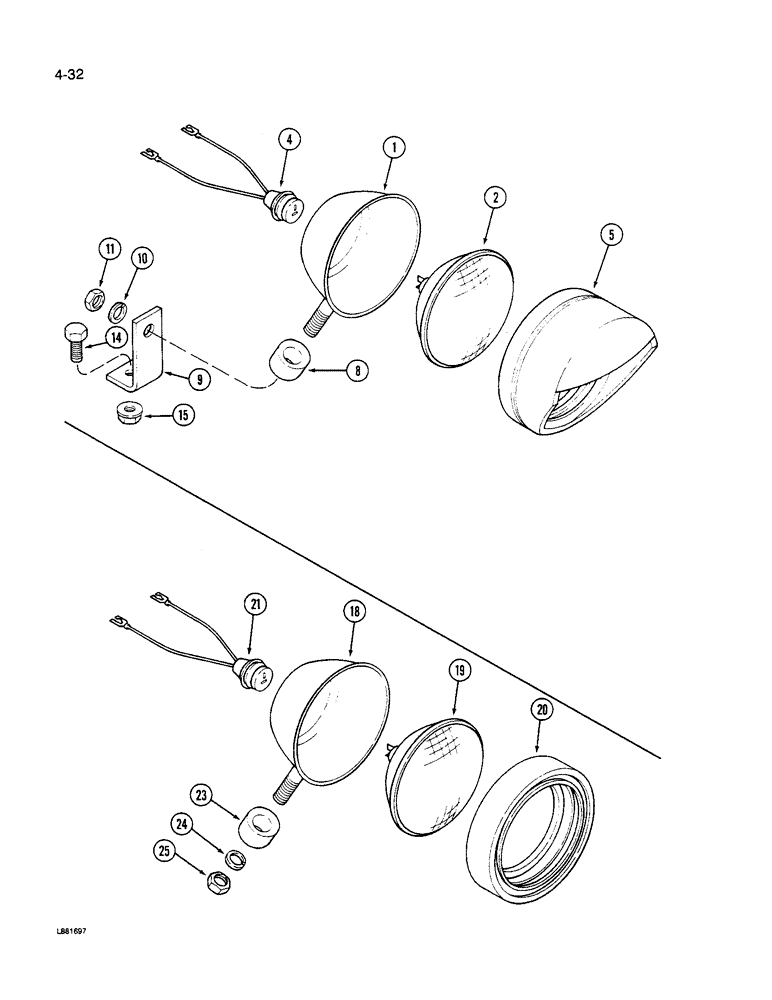

Запчасти Case IH 1640 (4-32) - GRAIN TANK LIGHT (06) - ELECTRICAL

245953C91

LAMP

LIGHT ASSEMBLY - grain tank (Order 245954C91), Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - light (Order 245953C91)

1шт.

2

28625R1

LAMP

- No. 4414

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - light

1шт.

5

107471C1

RETAINER

HOOD - light

1шт.

8

1267358C2

SEAT

- light mounting

1шт.

9

1317942C1

BRACKET

- grain tank light

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

14

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

1шт.

245954C91

LAMP

LIGHT ASSEMBLY - unloader, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - light (Order 245954C91), unloader light

1шт.

19

A42294

SEALED BEAM UNIT

LAMP - No. 4406, unloader light

1шт.

20

A25213

RETAINER

- shockproof (For use with Hobbs light), unloader light

1шт.

20

1252609C1

RETAINER

- shockproof (For use with Midwest light), unloader light

1шт.

21

530029R91

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - light, unloader

1шт.

23

1267358C2

SEAT

- light mounting, unloader light

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Unloader light 1/2"

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

Unloader light 1/2"-13, G5

1шт.
