(4-30) - FEEDER REVERSER HARNESS

Запчасти Case IH 1640 (4-30) - FEEDER REVERSER HARNESS (06) - ELECTRICAL

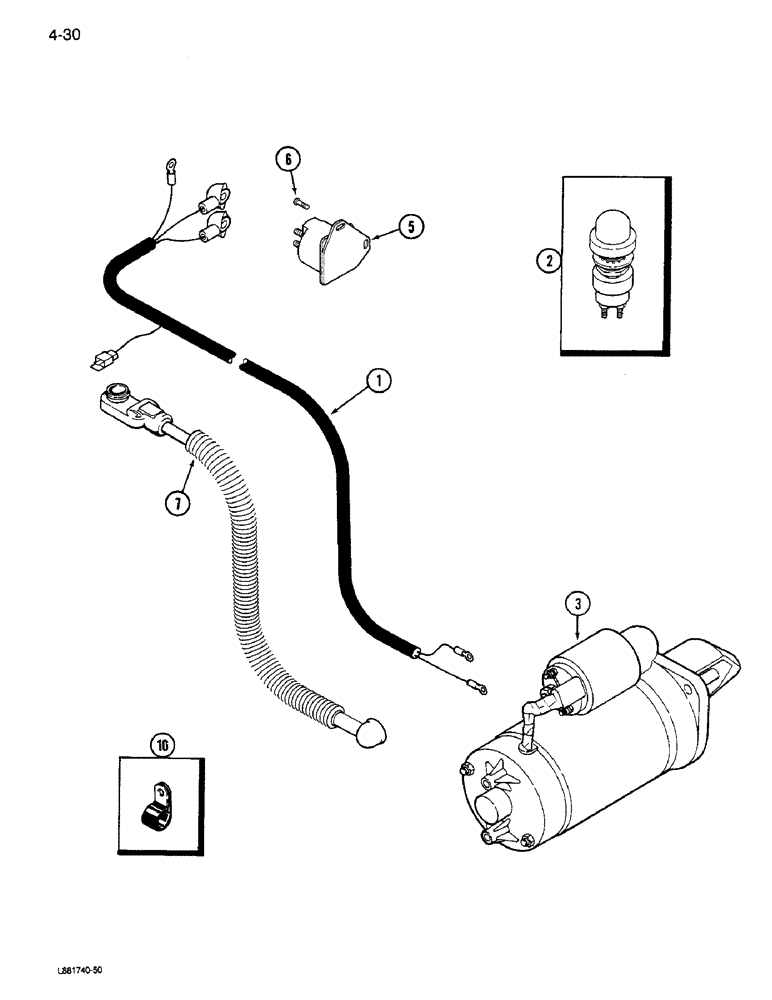

Схема запчастей Case IH 1640 - (4-30) - FEEDER REVERSER HARNESS (06) - ELECTRICAL
6
3
1
10
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245957C1

HARNESS

ASSEMBLY - feeder reverser

1шт.

2

453453C1

SWITCH

- feedr revrser, push button

1шт.

3

REF

INSTRUCTION

MOTOR - feeder reverser (See Figure 4-58)

1шт.

5

121613C1

IGNITION SWITCH

SWITCH - magnetic relay

1шт.

6

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - tapping pan head cross, 1/4 x 1/2 inch

2шт.

7

245955C2

CABLE

- battery positive

1шт.

10

406381C1

CLIP

- rubber cushioned

10шт.

Выбрано товаров: 7
