(4-24) - REAR LIGHTS AND FUEL SENDER HARNESS

Запчасти Case IH 1640 (4-24) - REAR LIGHTS AND FUEL SENDER HARNESS (06) - ELECTRICAL

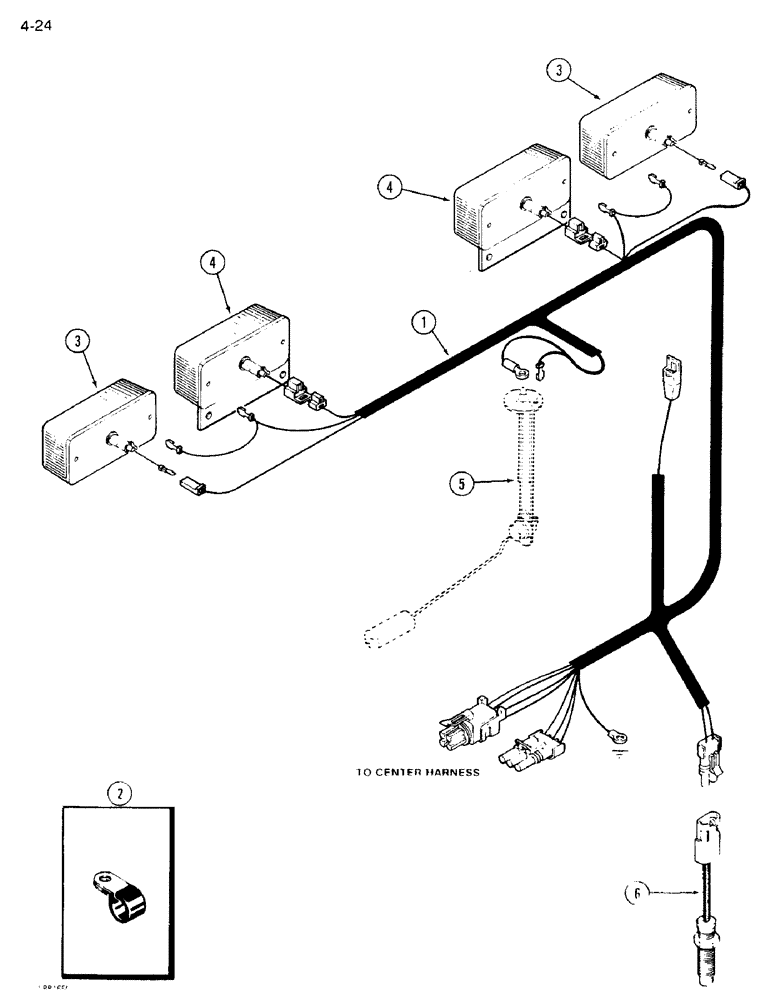

Схема запчастей Case IH 1640 - (4-24) - REAR LIGHTS AND FUEL SENDER HARNESS (06) - ELECTRICAL
2
4
1
4
6
3
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245228C2

HARNESS

ASSEMBLY - rear lights and fuel sender

1шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining (Replaces 84183C1)

1шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - warning rear (See Figure 4-36)

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-36)

2шт.

5

REF

INSTRUCTION

GAUGE - fuel level sending unit (See Figure 3-12)

1шт.

6

1252494C2

TRANSMITTER

- transducer, engine RPM

1шт.

Выбрано товаров: 6
