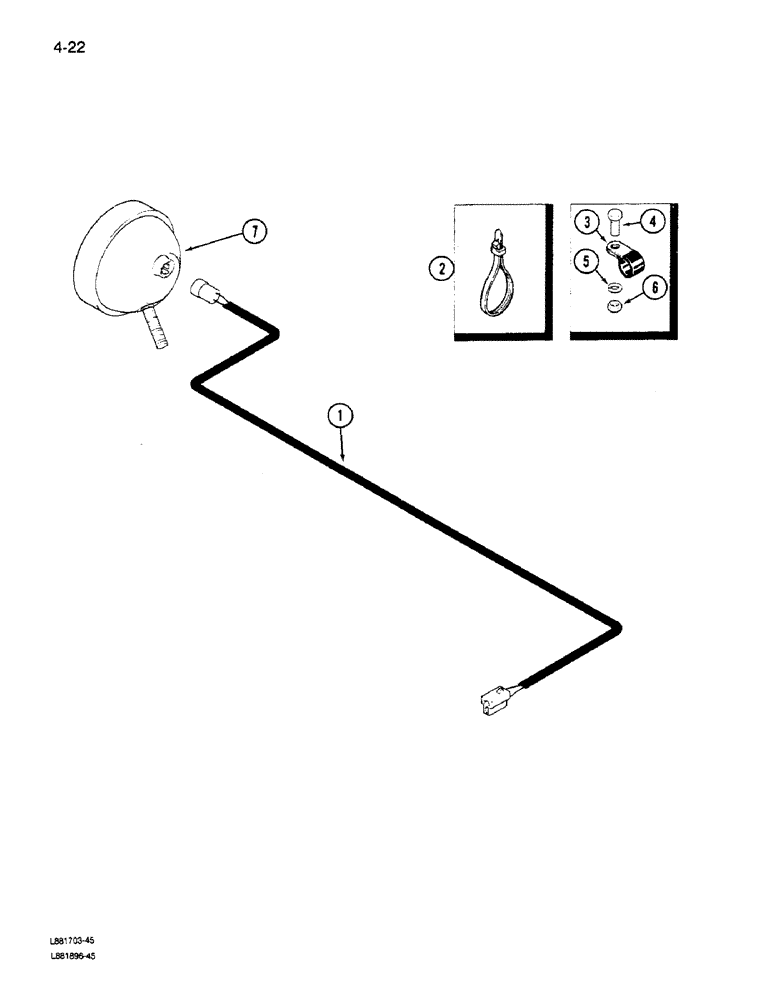

Запчасти Case IH 1640 (4-22) - UNLOADER LIGHT HARNESS (06) - ELECTRICAL

1

91828C1

HARNESS

ASSEMBLY - unloader light

1шт.

2

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

3

299401C1

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - harness

3шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

6

9635082

NUT,5/16" - 18, Gr 5

3шт.

7

245954C91

LAMP

ASSEMBLY - unloader (See Figure 4-32)

1шт.
