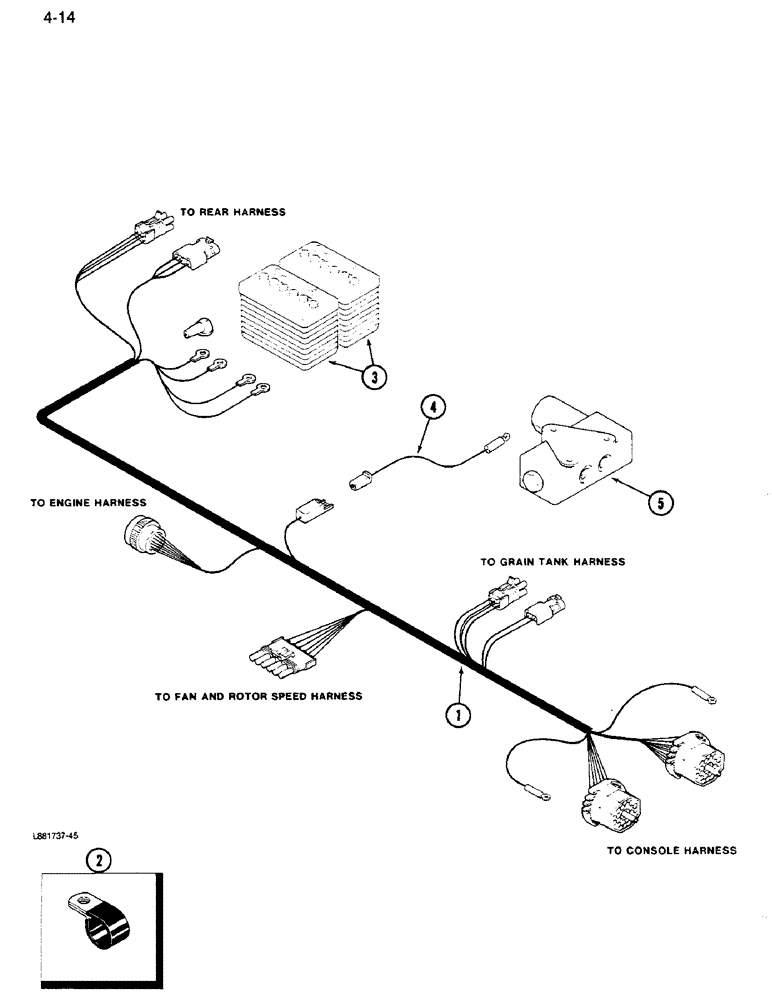

Запчасти Case IH 1640 (4-14) - CENTER HARNESS (06) - ELECTRICAL

1

1983382C1

HARNESS

- center (Replaces 245229C3)

1шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining (Replaces 84183C1)

10шт.

3

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 4-54)

2шт.

4

187736C1

CABLE

- separator clutch valve (Control concepts)

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-70)

1шт.
