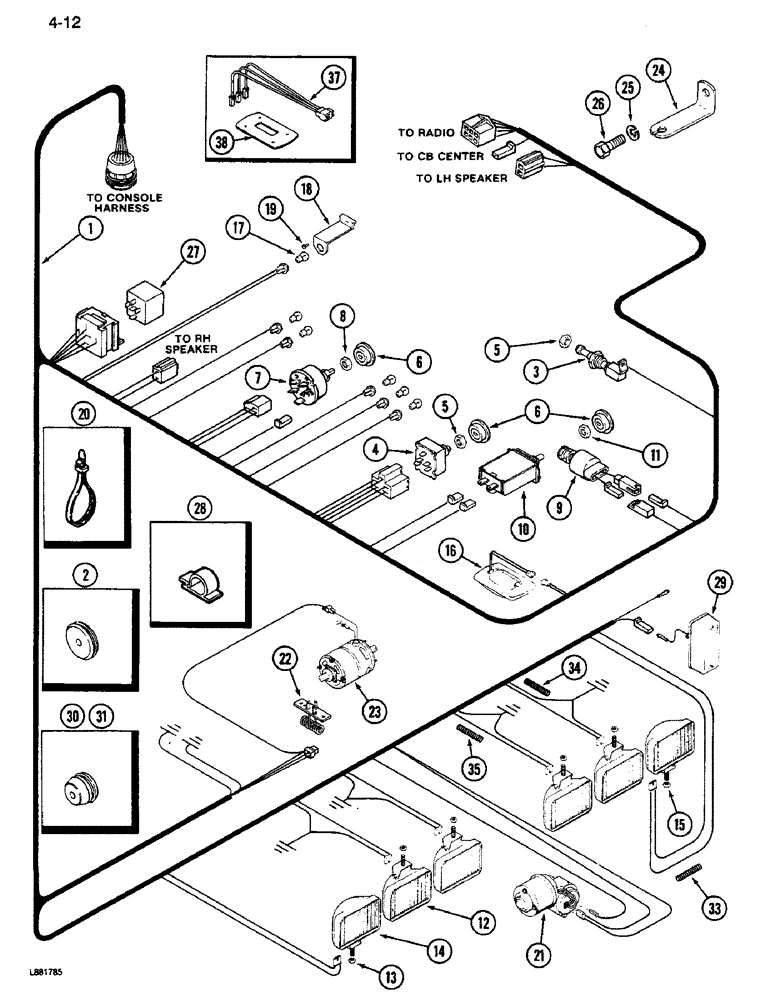

Запчасти Case IH 1640 (4-12) - CAB ROOF HARNESS (06) - ELECTRICAL

1

84311C5

HARNESS

- cab roof

1шт.

2

83931C1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome light control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam

1шт.

6

111282C1

KNOB

- blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam

2шт.

12

91666C91

INTERIOR LIGHT

LAMP ASSEMBLY - headlight (40 x 7 Halogen flood)

2шт.

13

118617

NUT,1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

14

245897C91

LAMP, WORK

LIGHT ASSEMBLY - work light (80 x 30 Halogen flood)

4шт.

15

118617

NUT,1/2"-13, G5

- hex jam, 1/2 inch NC

4шт.

16

REF

INSTRUCTION

LIGHT ASSEMBLY - dome (See Figure 4-36)

1шт.

17

A14553

BULB

LAMP - cab instrument panel backlight and warning light, Type C-2V, No. 57

6шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

28152R1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - No. 8-18 x 1/2 inch

5шт.

20

702093C1

CABLE TIE

STRAP - cable retaining

6шт.

21

REF

INSTRUCTION

WIPER ASSEMBLY - (See Figure 4-66)

1шт.

22

1255876C1

RESISTOR

ASSEMBLY - blower

1шт.

23

142990C2

MOTOR, ELECTRIC

MOTOR - blower, 12 volt, DC, PM

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1640 Prior To S/N JJC0034705, Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1283289C1

ANGLE

- outer flood light mounting bracket

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

27

1-7877

RELAY

- air conditioning

1шт.

28

169850C1

CLIP

- harness

2шт.

29

REF

INSTRUCTION

LAMP ASSEMBLY - warning (See Figure 4-36)

1шт.

30

1327650C1

GROMMET

- flood light, right

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

32

1321769C1

GROMMET

- light harness, left

1шт.

33

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 3-1/2 inch long (Order 92083C1, Serial Range: cut-length)

2шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 7 inch long (Order 92083C1, Serial Range: cut-length)

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 9 inch long (Order 92083C1, Serial Range: cut-length)

2шт.

R43250

CONDUIT

- harness, 50 feet

1шт.

37

1983386C1

HARNESS

- dome light adapter

1шт.

38

1979628C1

LARGE PLATE

PLATE - dome light

1шт.
