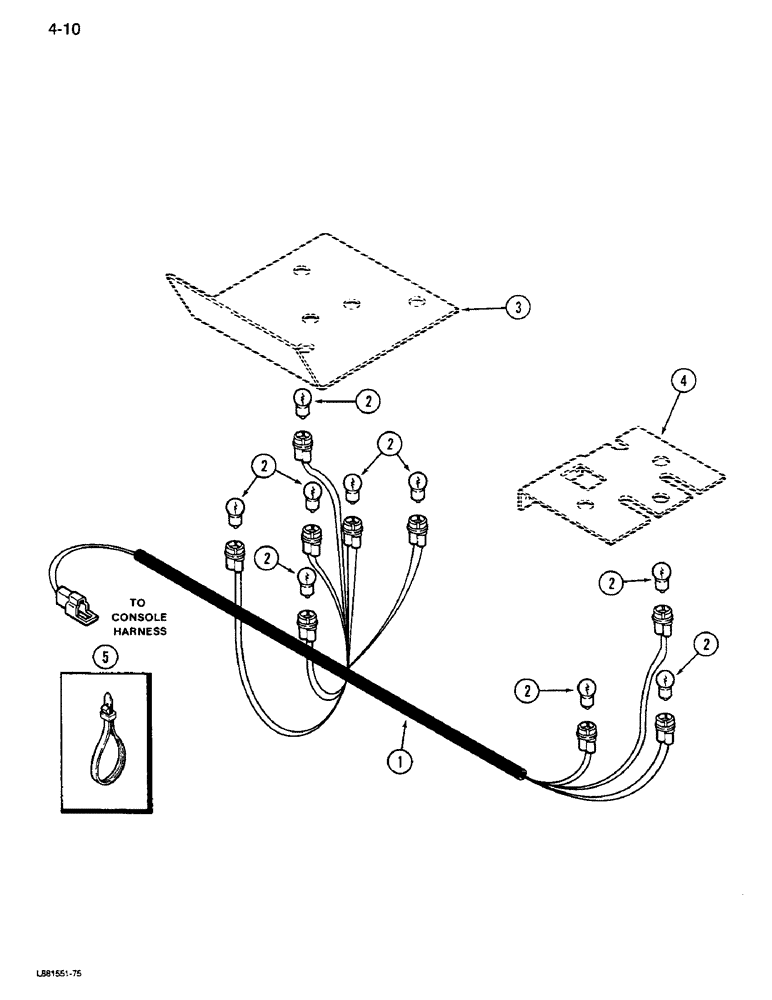

Запчасти Case IH 1640 (4-10) - CONSOLE BACK LIGHTING HARNESS (06) - ELECTRICAL
2
5
2
2
2
2
3
2
2
4
1
№
Артикул
Название
Примечание
Количество
1
245231C1
HARNESS
ASSEMBLY - console backlighting
1шт.
Removed and consolidated with the Console Harness. D0179
1шт.
2
A14553
BULB
- lamp, No. 57
9шт.
3
REF
INSTRUCTION
SUPPORT - backlight (See Figure 9G-2)
1шт.
4
REF
INSTRUCTION
SUPPORT - backlight (See Figure 9G-2)
1шт.
5
702093C1
CABLE TIE
STRAP - cable retaining
1шт.
Выбрано товаров: 6
