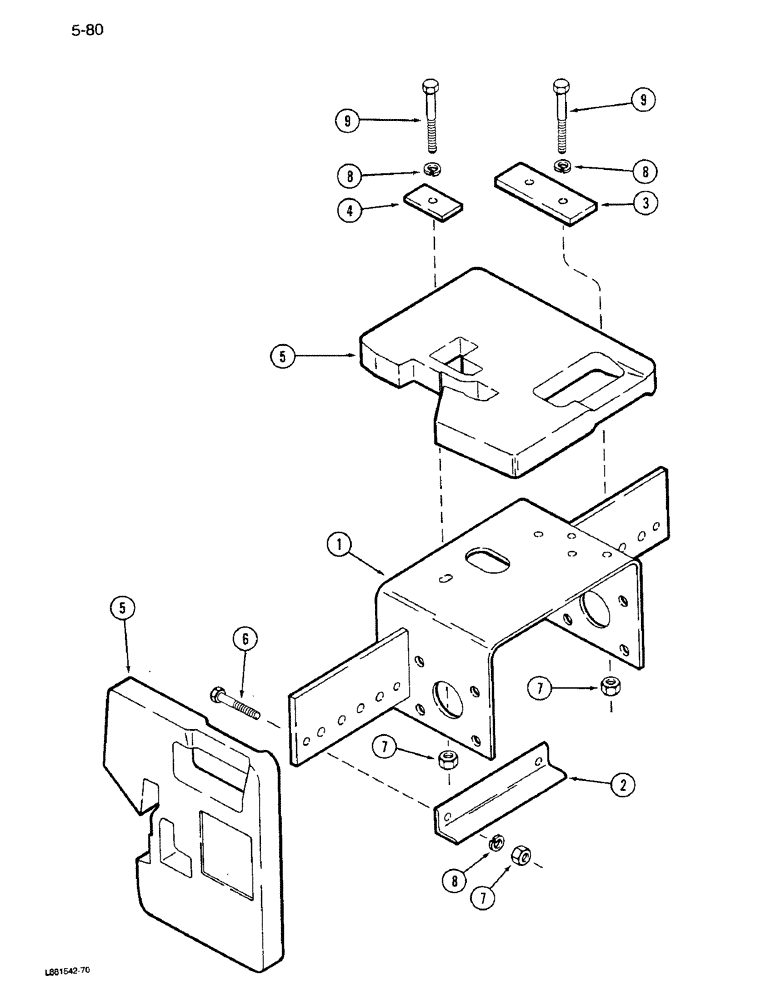

Запчасти Case IH 1640 (5-80) - STEERING AXLE WEIGHTS (04) - STEERING

1

185365C1

SUPPORT

- weight

1шт.

Do not use weights and brackets on combine equipped with power guide axle.

1шт.

2

1308872C1

BRACKET

ANGLE - weight retaining

2шт.

3

178434C1

CLAMP

- weight

1шт.

4

561838R1

PLATE

CLAMP - weight

1шт.

5

NSS

NOT SOLD SEPARAT

WEIGHT - 100 pounds (Machinery Item)

1шт.

6

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

7

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

8

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

9

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

3шт.
