(5-76) - SELECTOR VALVE, POWER GUIDE AXLE, PIN JJC0034001 AND AFTER

Запчасти Case IH 1640 (5-76) - SELECTOR VALVE, POWER GUIDE AXLE, PIN JJC0034001 AND AFTER (04) - STEERING

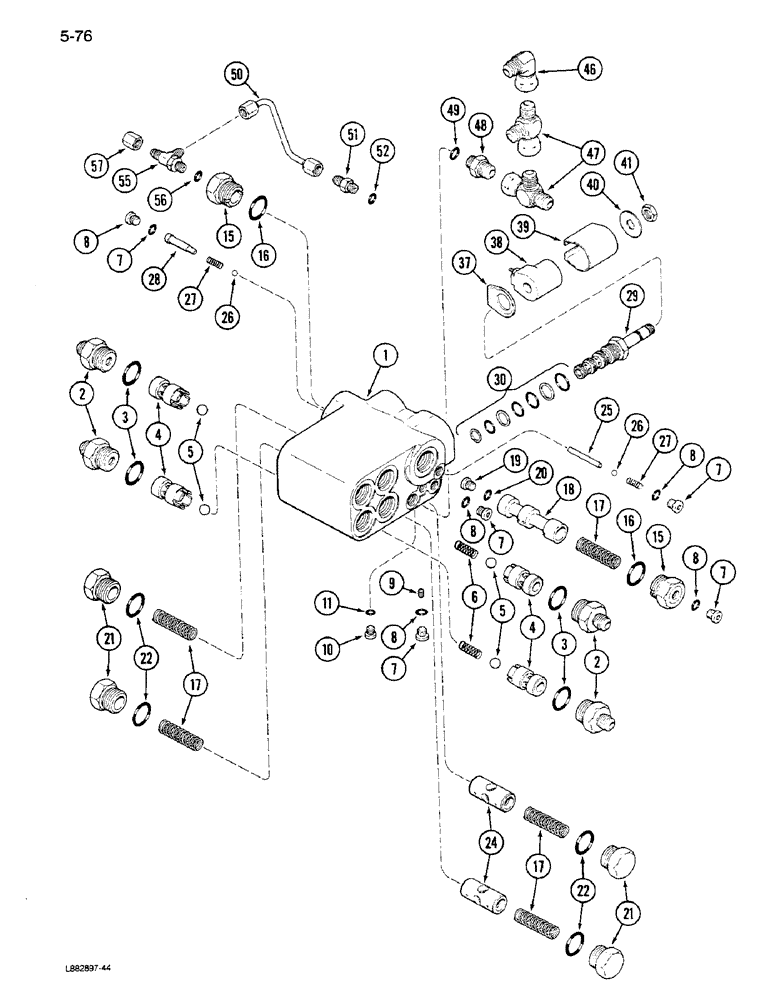

Схема запчастей Case IH 1640 - (5-76) - SELECTOR VALVE, POWER GUIDE AXLE, PIN JJC0034001 AND AFTER (04) - STEERING
2
25
19
26
8
1
15
3
9
18
22
17
7
52
38
7
15
28
7
8
21
7
10
20
50
47
6
26
48
39
21
8
3
2
4
16
56
8
37
46
27
17
5
5
27
22
57
41
8
30
17
7
11
55
24
4
51
40
29
49
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1978000C1

VALVE

ASSEMBLY - selector, steering Includes: Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 3/4-16 flare x 1-1/16-12 inch thread

4шт.

3

NSS

NOT SOLD SEPARAT

O-RING - connector

4шт.

4

NSS

NOT SOLD SEPARAT

SEAT - check ball

4шт.

5

NSS

NOT SOLD SEPARAT

BALL - check, 9/16 inch diameter

4шт.

6

NSS

NOT SOLD SEPARAT

SPRING - check, reverse

2шт.

7

1288962C1

PLUG

- hex socket

6шт.

8

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

6шт.

9

NSS

NOT SOLD SEPARAT

PLUG - orifice,1/16-27 PT

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - hex

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - plug sealing

1шт.

15

1970176C1

PLUG

- hex special

2шт.

16

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch O.D. tube

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - spool, flow divider and selector

5шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - selector

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - orifice

1шт.

20

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - hex, flow divider spool

4шт.

22

NSS

NOT SOLD SEPARAT

O-RING - plug, sealing

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - flow divider

2шт.

25

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

26

17010R1

BALL,5/16" Dia

2шт.

27

NSS

NOT SOLD SEPARAT

SPRING - shuttle, low priority

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

29

187849C1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, four way Includes: Ref. 30

1шт.

30

187850C1

SEAL KIT

SERVICE KIT - washer and o-ring

1шт.

1288956C2

SOLENOID

KIT - coil Includes: Ref. 37 - 41

1шт.

37

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

38

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

39

NSS

NOT SOLD SEPARAT

HOUSING - coil

1шт.

40

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

41

NSS

NOT SOLD SEPARAT

NUT - hex, thin

1шт.

46

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 3/4-16 inch thread

1шт.

47

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

ASSEMBLY - swivel, 3/4-16 inch thread

2шт.

48

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - reducer straight, 3/4-16 to 9/16-18 inch thread

1шт.

49

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

50

1970140C1

TUBE,4.78 mm ID

ASSEMBLY - pressure, charge

1шт.

51

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, 7/16-20 inch thread

1шт.

52

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

55

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ASSEMBLY - adjustable, 7/16-20 inch thread

1шт.

56

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

57

9403369

CAP,37 Degree, 7/16"-20

- hex, 7/16-20 inch thread

1шт.
