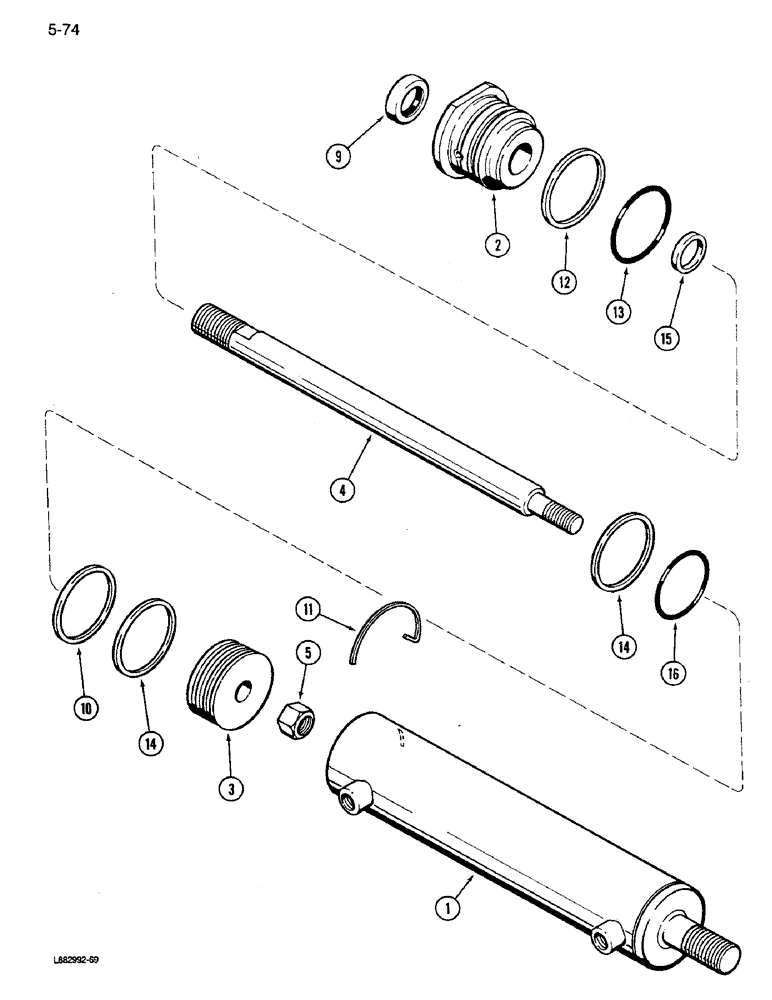

Запчасти Case IH 1640 (5-74) - STEERING CYLINDER ASSEMBLY, POWER GUIDE AXLE, P.I.N. JJC0034001 AND AFTER (04) - STEERING

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - steering Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 127913C93)

1шт.

2

127919C1

GLAND

HEAD - cylinder, front

1шт.

3

127921C1

PISTON

- cylinder

1шт.

4

127920C2

PISTON ROD

ROD - piston

1шт.

5

9411658

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NF Grade 8

1шт.

73661C92

SEAL KIT

KIT - cylinder service Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - back up, o-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - head, 2-1/8 x 2-1/2 inch Class 5

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/16 x 2-1/4 inch

1шт.
