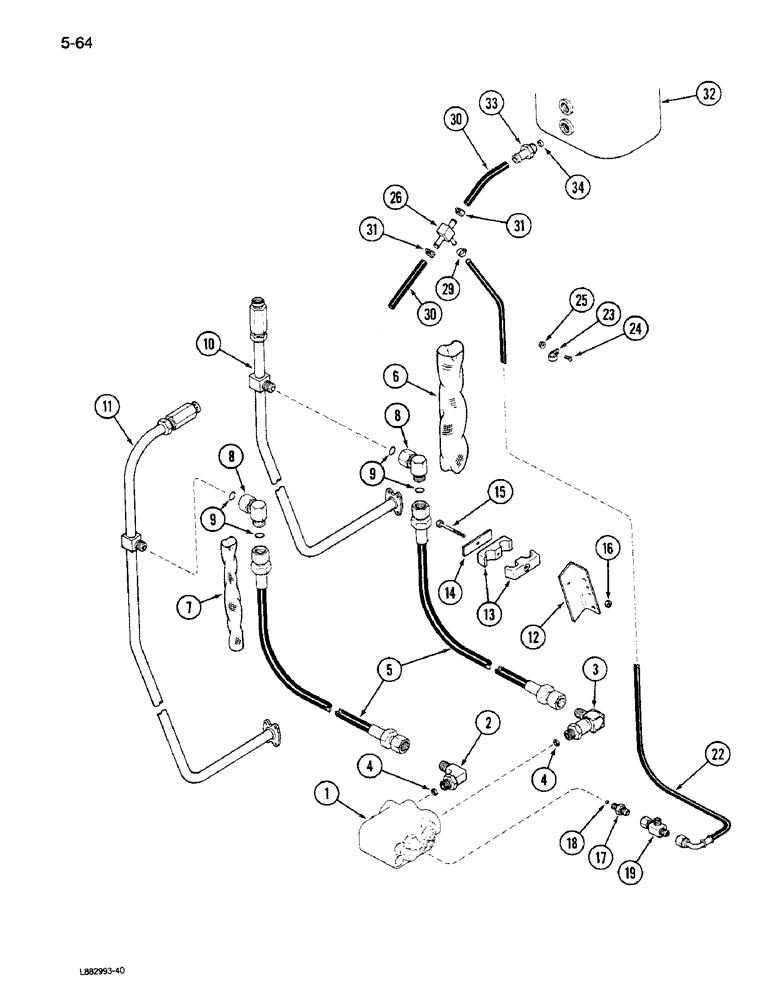

Запчасти Case IH 1640 (5-64) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, P.I.N. JJC0034001 AND AFTER (04) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - selector (See figure 5-76)

1шт.

2

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ASSEMBLY - 90 degree adjustable, 1-1/16-12 inch thread

1шт.

3

1979169C1

ELBOW

- 90 degree, long special

1шт.

3

1970175C1

ELBOW

-90 degree long special, 1-1/16-12 inch thread

1шт.

4

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch O.D. tube

2шт.

5

1979171C1

HOSE,19.05mm ID x 2165mm L

ASSEMBLY - valve pressure (Replaces 1957281C1)

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - hose, nylon 1219 mm long

1шт.

7

1970109C1

HOSE

SLEEVE - hose, nylon 1219 mm long

1шт.

8

1979168C1

ELBOW

- 90 degree special

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

10

1979175C1

HYD TUBE

TUBE - forward upper pressure (Replaces 1301717C1)

1шт.

11

1979174C1

HYD TUBE

TUBE - reverse upper pressure (Replaces 1301716C1)

1шт.

12

1324467C1

ANGLE

BRACKET - angle, hose

1шт.

13

1324473C1

CLAMP

- hose

1шт.

14

1324469C1

PLATE

- clamp, hose

1шт.

15

25678R1

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 8

- hex, 5/16 NC x 3-1/4 inch, Grade 8

1шт.

16

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

17

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - jump size, 3/4-16 x 9/16-18 inch thread

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

19

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

ASSEMBLY - swivel, 3/4-16 inch thread

1шт.

22

1957283C3

HOSE

- housing drain, 1/2 ID x 134 inch long

1шт.

23

299413C1

CLAMP

- hose, closed coated

1шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

26

1957288C1

FITTING

TEE - return hose (Replaces 1970100C1)

1шт.

29

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - worm drive hose

1шт.

30

REF

INSTRUCTION

HOSE - return, 7 inch (Order B90927 and, Serial Range: cut-length)

2шт.

B90927

HOSE

- bulk, 25 foot roll

1шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose retaining

4шт.

32

REF

INSTRUCTION

RESERVOIR - hydraulic (See figure 8-2)

1шт.

33

470420R11

FITTING

CONNECTOR - hydraulic, hex thread x hose barb end

1шт.

34

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch O.D. tube

1шт.
