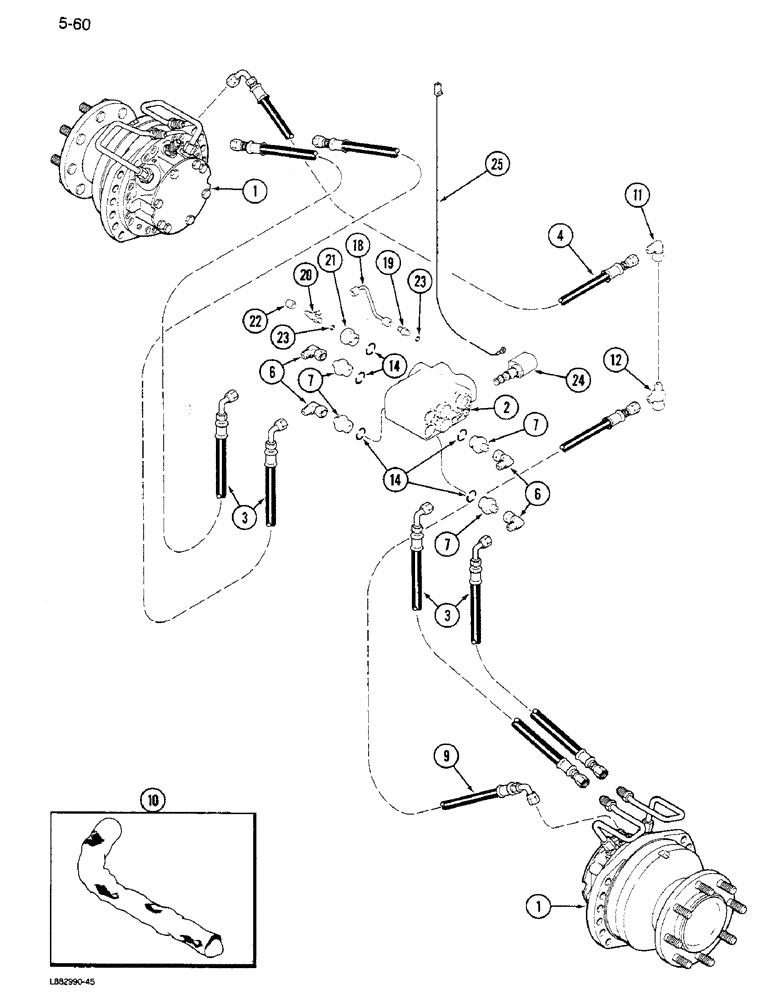

Запчасти Case IH 1640 (5-60) - AXLE HYDRAULIC MOTOR SYSTEM, POWER GUIDE AXLE, P.I.N. JJC0034001 AND AFTER (04) - STEERING

1

REF

INSTRUCTION

MOTOR ASSEMBLY - drive (See Figure 5-78)

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - selector (See Figure 5-76)

1шт.

3

1970387C1

HOSE

ASSEMBLY - pressure, motor drain, 57 inch

4шт.

4

1970388C1

HOSE

ASSEMBLY - pressure, motor drain, 67 inch

1шт.

6

9410255

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ASSEMBLY - 45 degree swivel, 3/4-16 inch thread

4шт.

7

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 1-1/16-12 inch thread

4шт.

9

1970389C1

HOSE

ASSEMBLY - motor drain, 61 inch

1шт.

10

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 2-3/8 ID x 48 inch long

2шт.

11

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 3/4-16 inch thread

1шт.

12

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

ASSEMBLY - swivel, 3/4-16 inch thread

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch O.D. tube

5шт.

18

1970140C1

TUBE,4.78 mm ID

ASSEMBLY - pressure, charge

1шт.

19

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, 7/16-20 inch thread

1шт.

20

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ASSEMBLY - adjustable, 7/16-20 inch thread

1шт.

21

1970176C1

PLUG

- hex special, hydraulic

1шт.

22

9403369

CAP,37 Degree, 7/16"-20

- 1/4 inch tube

1шт.

23

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

24

REF

INSTRUCTION

SOLENOID ASSEMBLY - spool, charge preessure (See Figure 5-76)

1шт.

25

1964572C2

WIRE HARNESS

CABLE ASSEMBLY - power, solenoid

1шт.

26070R1

WASHER,15/16" x 1 3/4" x .179", HDN

- hardened flat, 15/16 x 1-3/4 x 3/16 inch

1шт.
