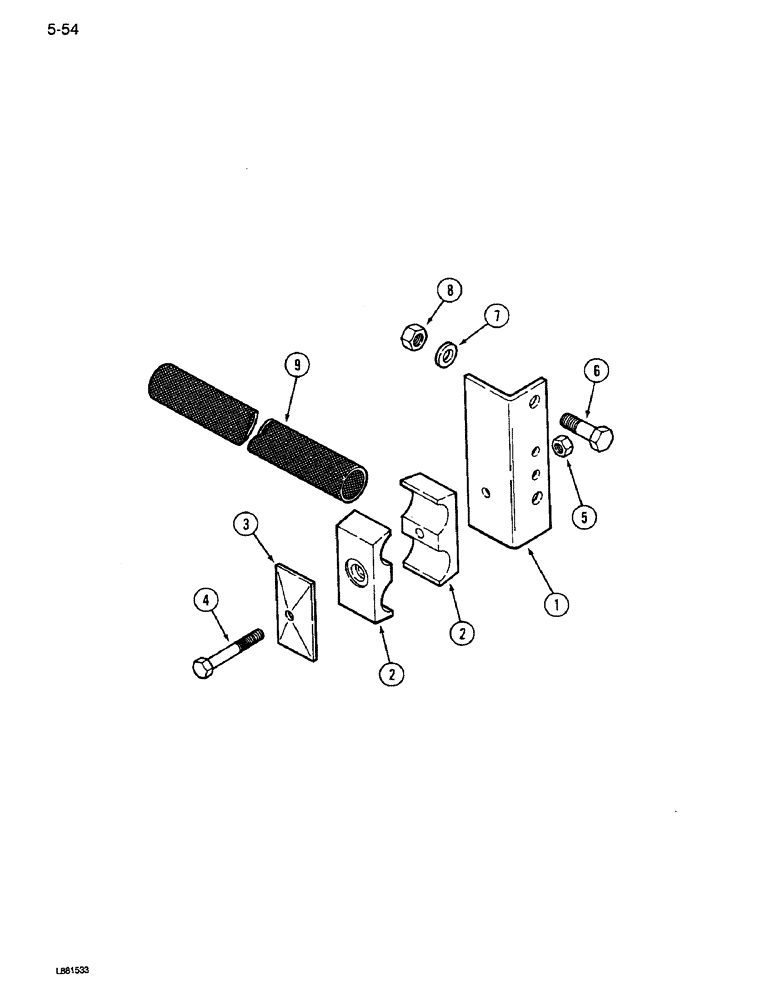

Запчасти Case IH 1640 (5-54) - STEERING HOSE MOUNTING KIT, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1315505C1

KIT

- steering hydraulic hose mounting Includes: Ref. 1 - 9

1шт.

1

1324467C1

ANGLE

- hose bracket

1шт.

2

1324473C1

CLAMP

- hose

1шт.

3

1324469C1

PLATE

- hose clamp

1шт.

4

25678R1

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 8

- hex, 5/16 NC x 3-1/4 inch, Grade 8

1шт.

5

9413977

NUT

- hex prevailing torque, 5/16 inch NC

1шт.

6

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

195-104

WASHER,3/8"

- flat, 7/16x 1 x 1/16 inch

2шт.

8

9411655

LOCK NUT,3/8"-16, GB

NUT - hex prevailing torque, 3/8 inch NC

2шт.

9

1324450C1

SLEEVE

- nylon, 36 inch

2шт.
