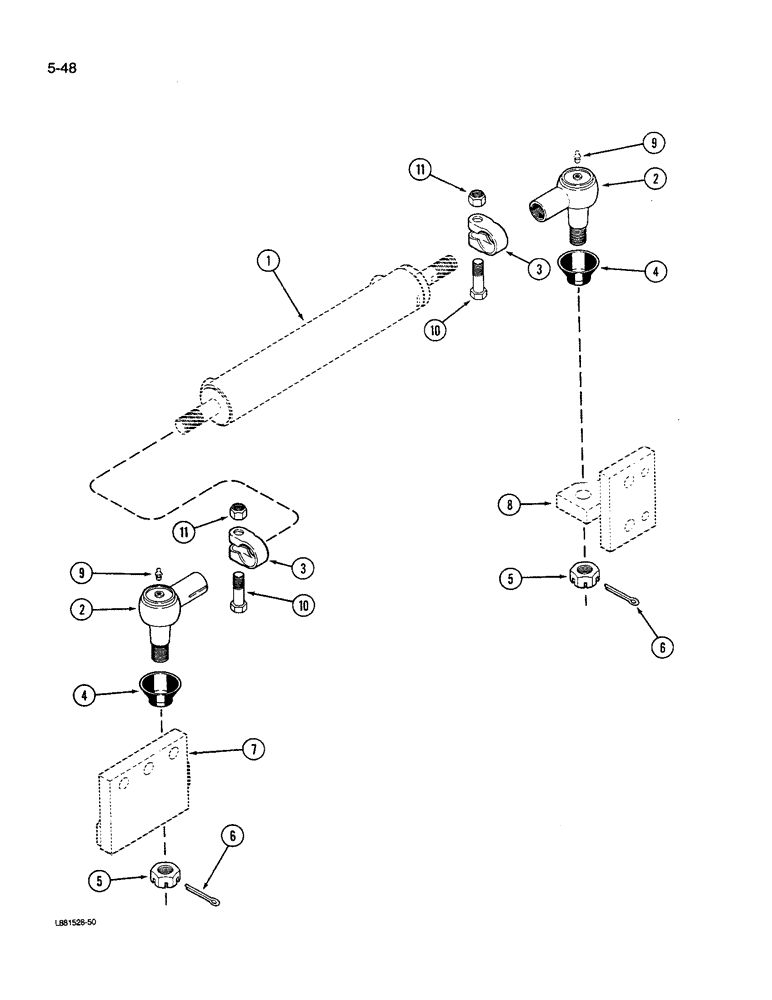

Запчасти Case IH 1640 (5-48) - STEERING CYLINDER AND BALL JOINT ENDS, POWER GUIDE AXLE PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1

REF

INSTRUCTION

CYLINDER - steering (See Figure 5-12)

1шт.

2

186140C91

BALL JOINT

END ASSEMBLY - steering cylinder ball joint Includes: Ref. 3 - 5

2шт.

3

446308C91

CLAMP

- tie rod

1шт.

4

110373R1

DUST CAP

SEAL - end

1шт.

5

427646

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

1шт.

6

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

7

REF

INSTRUCTION

SUPPORT - steering bracket (See Figure 5-42)

1шт.

8

REF

INSTRUCTION

SUPPORT - tie rod, left (See Figure 5-42)

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

10

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

2шт.

11

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex prevailing torque, 7/16 inch NC

2шт.
