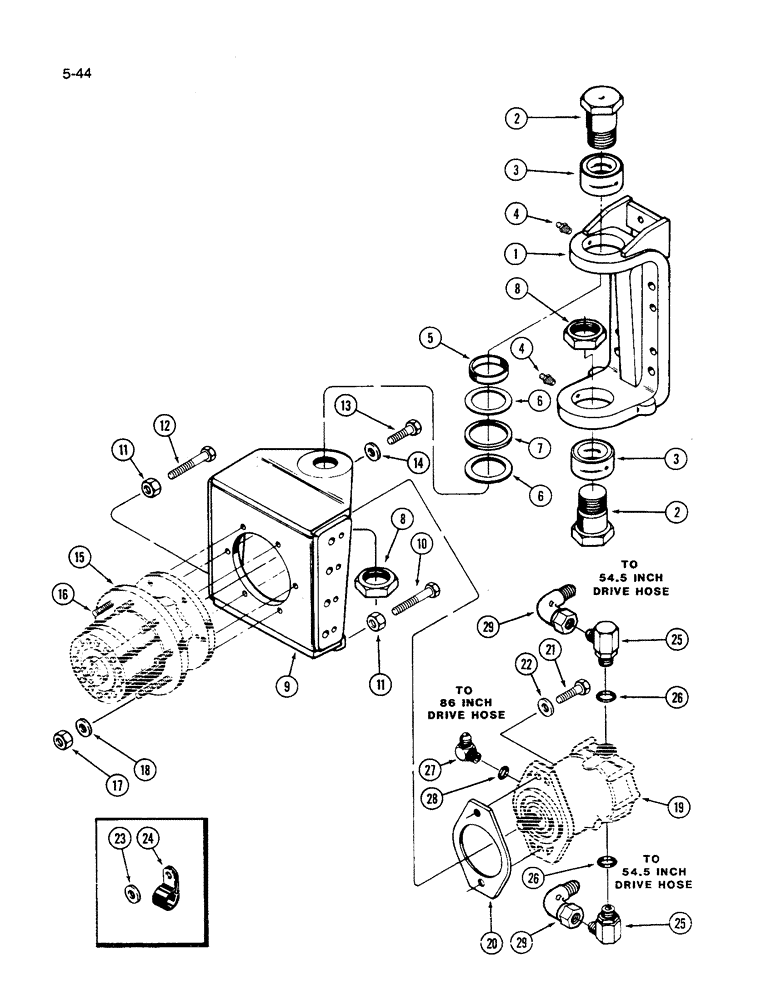

Запчасти Case IH 1640 (5-44) - WHEEL DRIVE SUPPORTS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1

1314471C1

SUPPORT

- frame

2шт.

2

1324468C1

BOLT,1 5/8" - 12 x 2.74"

- pivot pin

4шт.

3

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - spherical radial

4шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 inch NF taper drive

4шт.

5

1310560C1

THRUST WASHER

- thrust washer spacer

2шт.

6

890477C1

WASHER

WASHER - thrust

4шт.

7

1310562C1

THRUST WASHER

- nylatron thrust

2шт.

8

1310553C1

JAM NUT

- hex jam, 1-5/8-12 inch

4шт.

9

1314472C1

SUPPORT

- frame

2шт.

10

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

2шт.

11

25949R1

JAM NUT,Jam, 5/8"-11, G8

- hex, 5/8 inch NC, Grade 8

4шт.

12

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

13

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

12шт.

14

1324470C1

WASHER

- flat, 41/64 x 1 x 3/64

12шт.

15

REF

INSTRUCTION

HOUSING - planetary gear (See Figure 5-58) Includes: Ref. 16

2шт.

16

1310563C1

STUD,5/8" - 18 x 2.15"

- headed, 5/8 NF x 2-3/8 inch

18шт.

17

25676R1

NUT,5/8"-18, G8

- hex, 5/8 inch NF, Grade 8

18шт.

18

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

- flat, hardened

18шт.

19

REF

INSTRUCTION

MOTOR - fixed axial piston (See Figure 5-56)

2шт.

20

1310555C1

GASKET

- motor

2шт.

21

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

4шт.

22

NLS

NO LONGER SERVICED

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

23

27309R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

24

28135R1

CLAMP

- coated

1шт.

25

1324476C1

ELBOW

- 90 degree high pressure swivel, 1-1/16-12 thread

4шт.

26

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 O.D. tube

4шт.

27

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 9/16-18 x 3/4-16 thread

2шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 O.D. tube

2шт.

29

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1-1/16-12 thread

4шт.
