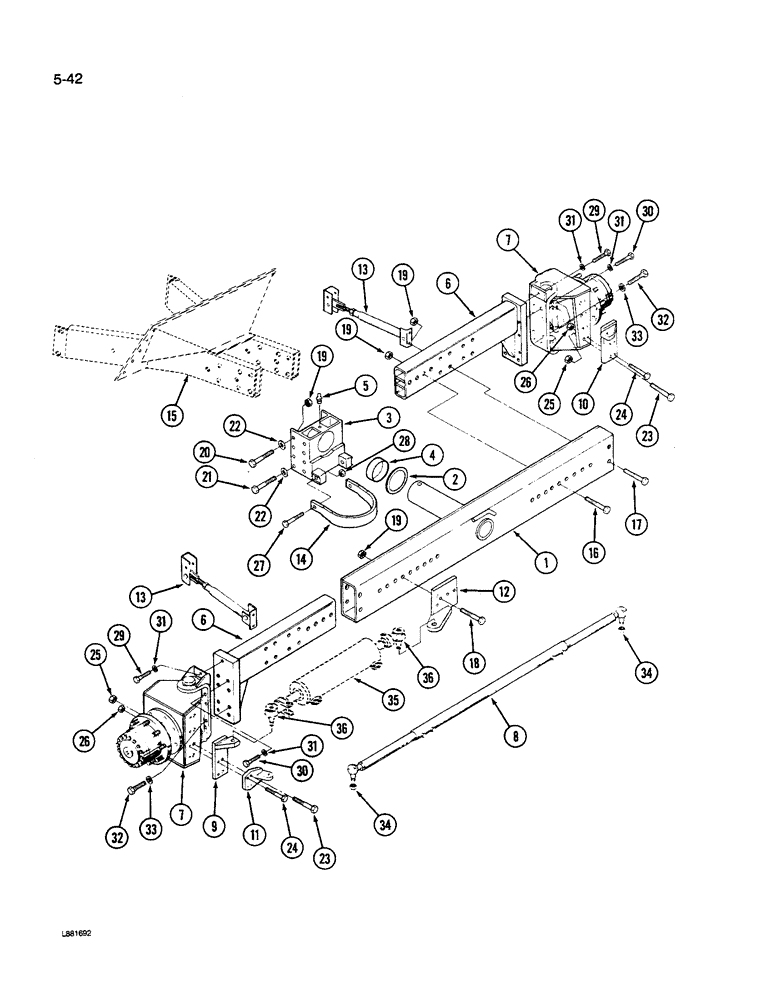

Запчасти Case IH 1640 (5-42) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1

1302522C2

STEERING AXLE

AXLE - adjustable, 108 to 120 inch

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- pivot

4шт.

3

186599C92

SUPPORT ASSY.

SUPPORT ASSEMBLY - axle pivot Includes: Ref. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- pivot support

2шт.

5

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, 3/16 inch drive type

2шт.

6

1324475C1

EXTENSION

- axle

2шт.

7

REF

INSTRUCTION

DRIVE - wheel (See Figure 5-58)

2шт.

8

REF

INSTRUCTION

ROD - tie (See Figure 5-46)

1шт.

9

1324461C1

SUPPORT

- tie rod, left

1шт.

10

1324463C1

SUPPORT

- tie rod, right

1шт.

11

1324462C1

SUPPORT

- steering bracket

1шт.

12

1324464C1

SUPPORT

- steering bracket

1шт.

13

REF

INSTRUCTION

SUPPORT ASSEMBLY - axle stay (See Figure 5-26)

2шт.

14

1302625C1

CHANNEL

STRAP - tow

1шт.

15

REF

INSTRUCTION

SUPPORT - steering axle (See Figure 5-58)

1шт.

16

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3шт.

17

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

18

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

3шт.

19

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex flange lock, 3/4 inch NC, Grade 8

18шт.

20

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

6шт.

21

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

- hex, 3/4 NC x 5-1/2 inch, Grade 8

2шт.

22

25712R1

WASHER

- flat, hardened

8шт.

23

24893R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

4шт.

24

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch, Grade 8

4шт.

25

9413983

NUT

- hex prevailing torque lock, 3/4 inch NC, Grade 8

4шт.

26

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

27

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

28

1338079C1

FLANGE NUT

- hex flange lock, 5/8 inch NC

2шт.

29

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

30

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

8шт.

31

366866C1

LOCK WASHER,5/8"

5/8"

10шт.

32

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

8шт.

33

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

34

125158

SLOTTED NUT,5/8"-11, G5

NUT - hex slotted, 5/8 inch NF

2шт.

35

REF

INSTRUCTION

CYLINDER - steering (See Figure 5-16)

1шт.

36

REF

INSTRUCTION

END - steering cylinder (See Figure 5-48)

2шт.
