(5-40) - WHEELS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001

Запчасти Case IH 1640 (5-40) - WHEELS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

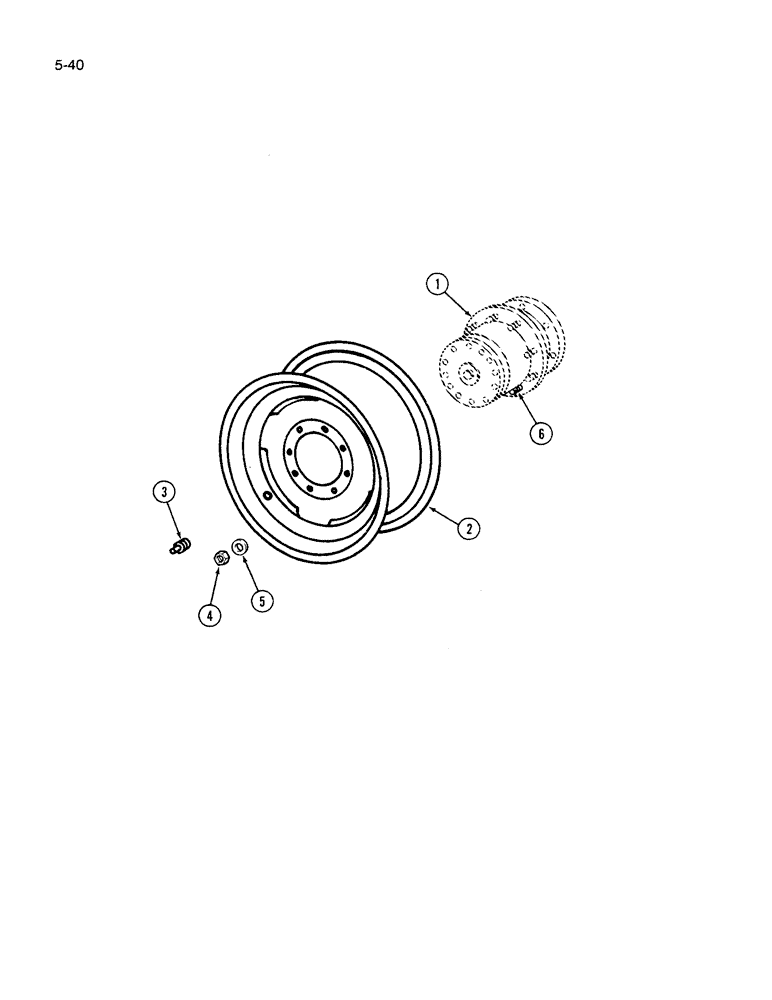

Схема запчастей Case IH 1640 - (5-40) - WHEELS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING
3
2
4
6
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING - planetary gear (See Figure 5-58)

2шт.

2

188928C1

WHEEL

- for 14.9 x 24 tire

2шт.

2

1970153C1

RIM

WHEEL - for 16 x 26 tire

2шт.

3

536705R91

VALVE

- inflation

2шт.

4

25676R1

NUT,5/8"-18, G8

- hex, 5/8 inch NF, Grade 8

18шт.

5

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

- flat, hardened

18шт.

6

1310563C1

STUD,5/8" - 18 x 2.15"

- flanged, wheel mounting

18шт.
