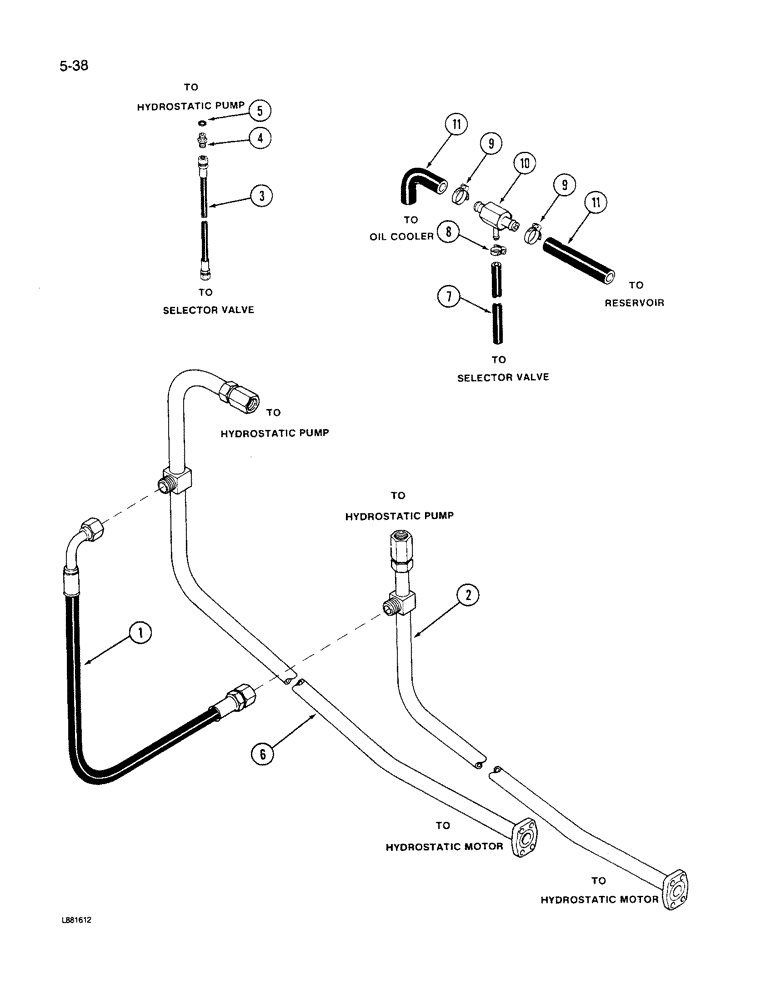

Запчасти Case IH 1640 (5-38) - 1304931C1 HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1

1304931C1

HOSE,19.05mm ID x 762mm L

- valve pressure, 3/4 ID x 30 inch

2шт.

2

1301717C1

TUBE

- forward upper pressure

1шт.

3

138961C1

HOSE

- valve pressure, 1/4 ID x 63 inch

1шт.

4

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - short straight, 1/4 inch tube

1шт.

5

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

6

1301716C1

TUBE

- reverse upper pressure

1шт.

7

1315504C1

HOSE

- housing drain, 3/8 inch ID x 47 inch

1шт.

8

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose, 7/32 to 5/8 inch

1шт.

9

995218R1

CLAMP

- hose, 11/16 to 1-1/4 inch

2шт.

10

196709C1

TEE

- return hose, 3/4 x 3/4 x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - return, 7 inch (Order 180720C1, Serial Range: cut-length)

1шт.
