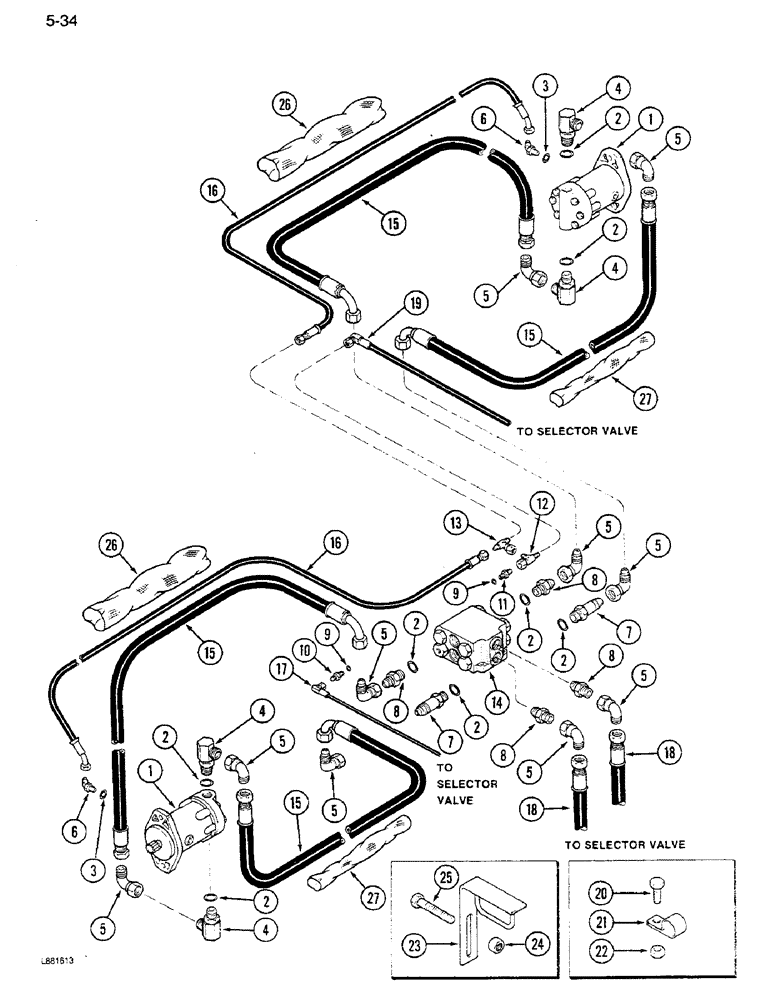

Запчасти Case IH 1640 (5-34) - HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0034001 (04) - STEERING

1

REF

INSTRUCTION

MOTOR - wheel drive (See Figure 5-56)

2шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch O.D. tube

8шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch O.D. tube

2шт.

4

1324476C1

ELBOW

- 90 degree, 3/4 inch tube

4шт.

5

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1-1/16-12 thread

11шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable reducing, 9/16-18 x 3/4-16 thread

11шт.

7

9410231

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, Pipe

CONNECTOR - straight, 3/4 inch tube

2шт.

8

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 3/4 inch tube

4шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

10

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, 7/16-20 thread

1шт.

11

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight reducing, 3/8 inch tube

1шт.

12

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 3/8 inch tube

1шт.

13

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

- swivel, 3/8 inch tube

1шт.

14

REF

INSTRUCTION

VALVE - positraction (See Figure 5-50)

1шт.

15

1324452C1

HOSE

- drive, 54-1/2 inch

4шт.

16

1324453C1

HOSE

- drive, 86 inch

2шт.

17

REF

INSTRUCTION

HOSE - charge pressure (See Figure 5-36)

1шт.

18

REF

INSTRUCTION

HOSE - pressure (See Figure 5-36)

2шт.

19

REF

INSTRUCTION

HOSE - drain (See Figure 5-36)

1шт.

20

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

21

28135R1

CLAMP

- closed, coated, 15/16 inch ID

2шт.

22

25949R1

JAM NUT,Jam, 5/8"-11, G8

- hex, 5/8 inch NC, Grade 8

2шт.

23

1324471C1

BRACKET

SUPPORT - bracket plate

2шт.

24

1324472C1

BRACKET

SUPPORT - hose bracket

2шт.

25

1324473C1

CLAMP

- hose

2шт.

26

1324474C1

PLATE

SUPPORT - hose clamp plate

2шт.

30

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC

2шт.

31

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

32

1324450C1

SLEEVE

- cordura nylon, 3-5/16 ID x 36 inch long

2шт.

33

1324451C1

PROTECTIVE SLEEVE,40.4 mm ID x 914.50 mm

SLEEVE, 40.40 mm ID x 914.50 mm, Cordura Nylon

2шт.
