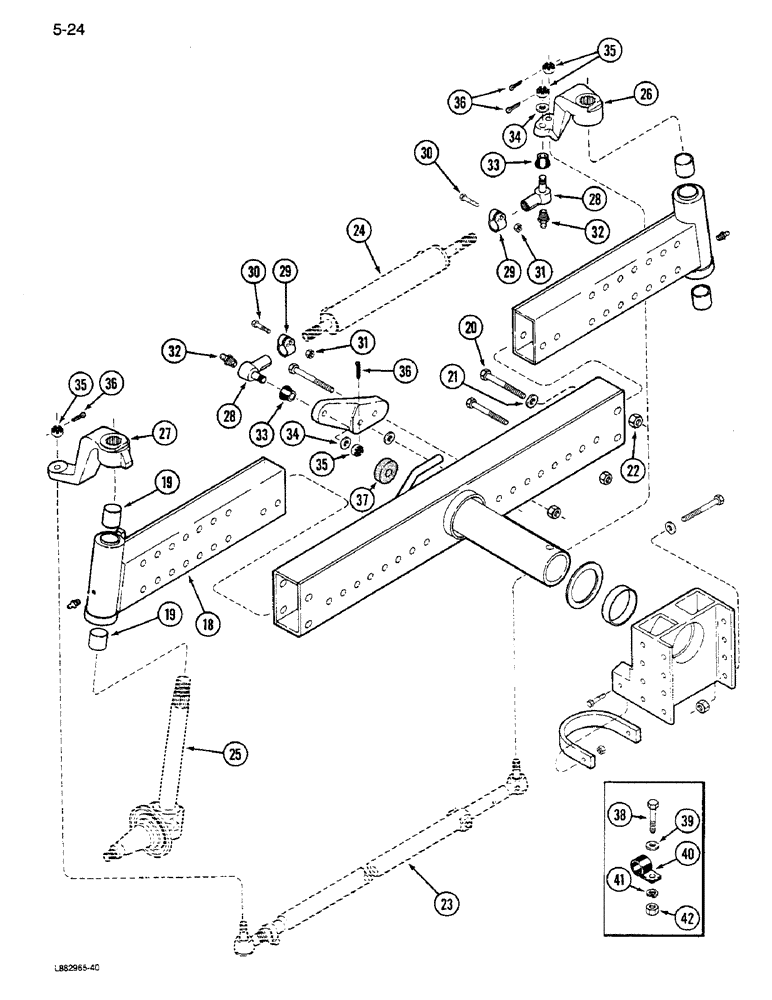

Запчасти Case IH 1640 (5-24) - STEERING AXLE, ADJUSTABLE, EXCEPT POWER GUIDE AXLE, (CONT) (04) - STEERING

18

183455C91

EXTENSION

ASSEMBLY - axle, right (for 92 to 120 inch axle)

1шт.

18

177764C91

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, right (for 67 to 91 inch axle)

1шт.

18

178489C91

EXTENSION

ASSEMBLY - axle, right (for 56 to 68 inch axle)

1шт.

19

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

2шт.

20

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

20

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

21

25712R1

WASHER

- flat, hardened

1шт.

22

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, Grade 8

1шт.

23

REF

INSTRUCTION

ROD ASSEMBLY - tie (See Figure 5-26)

1шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-10)

1шт.

25

REF

INSTRUCTION

KNUCKLE - steering (See Figure 5-28)

1шт.

26

193911C3

ARM

- steering, left

1шт.

27

193912C3

STEERING ARM

- steering, right

1шт.

28

186796C1

BALL JOINT

SOCKET - steering cylinder end

2шт.

29

384371R1

CLAMP

- socket

1шт.

30

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

31

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex prevailing torque, 7/16 inch NC

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

33

382562R1

SEAL

- socket end

2шт.

34

21712R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64 inch

2шт.

35

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

4шт.

36

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

37

167955C2

SEAL

- steering hoses

1шт.

38

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

39

134238R1

WASHER

- flat, 11/32 x 1 x 1/16 inch

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

40

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- steering hose

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

1шт.

Power steering hoses on 92 to 120 inch axle only.

1шт.
