Запчасти Case IH 1620 (5-42) - STEERING CYLINDER ASSEMBLY, POWER GUIDE AXLE (04) - STEERING

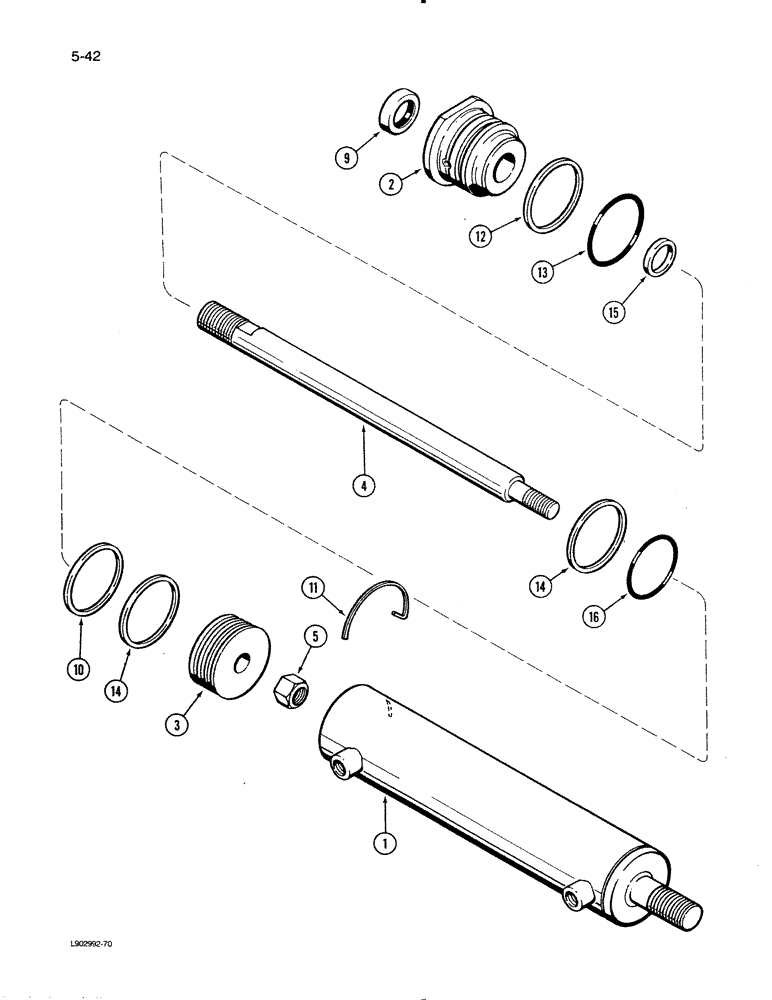

Схема запчастей Case IH 1620 - (5-42) - STEERING CYLINDER ASSEMBLY, POWER GUIDE AXLE (04) - STEERING
14
14
16
5
9
2
12
1
3
10
13
11
4
15

Артикул

Название

Примечание

Количество

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 127913C93)

1шт.

2

127919C1

GLAND

HEAD - cylinder, front

1шт.

3

127921C1

PISTON

- cylinder

1шт.

4

127920C2

PISTON ROD

ROD - piston

1шт.

5

9411658

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NF, Grade 8

1шт.

73661C92

SEAL KIT

KIT - cylinder service, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - back up, o-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - head, 2-1/8 x 2-1/2 inch

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/16 x 2-1/4 inch

1шт.

Выбрано товаров: 15
