(5-40) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE

Запчасти Case IH 1620 (5-40) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE (04) - STEERING

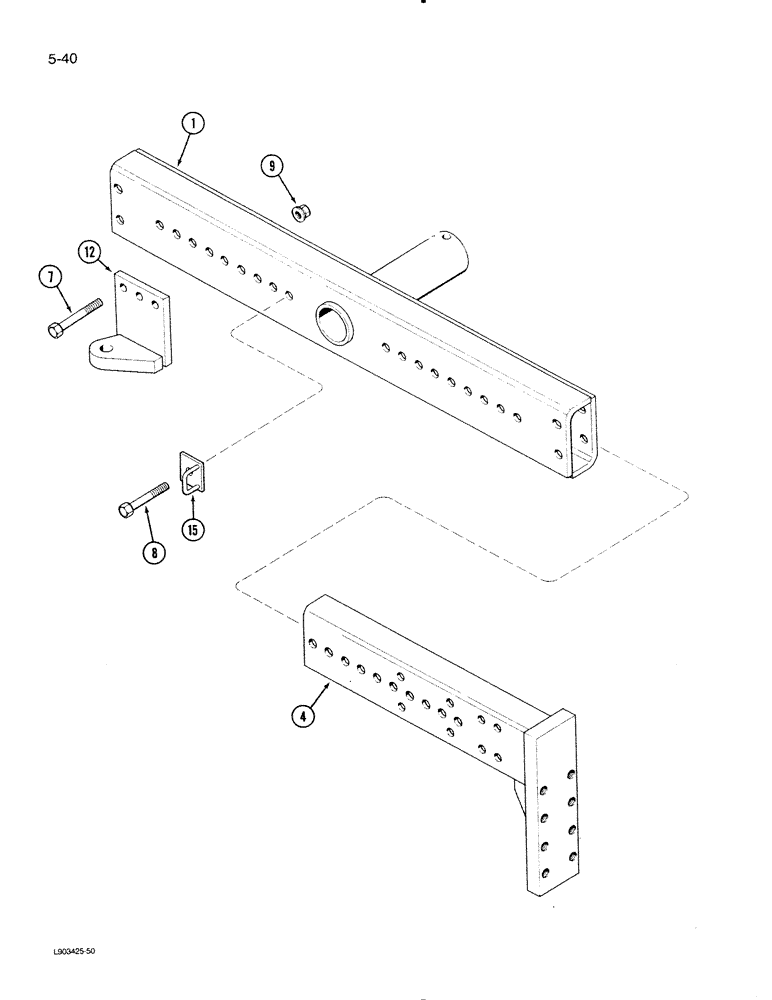

Схема запчастей Case IH 1620 - (5-40) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE (04) - STEERING
15
1
7
8
4
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

186317C2

AXLE

ASSEMBLY - adjustable, grain, 96 to 120 inch

1шт.

4

1977197C1

AXLE

EXTENSION - axle

2шт.

7

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

5шт.

8

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

8шт.

9

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex flange lock, 3/4 inch NC

13шт.

12

1977229C1

SUPPORT

- bracket, steering

1шт.

15

1979120C1

GUIDE

BRACKET - hose, cylinder

1шт.
