Запчасти Case IH 1620 (5-20) - STEERING TIE ROD, ADJUSTABLE AXLES (04) - STEERING

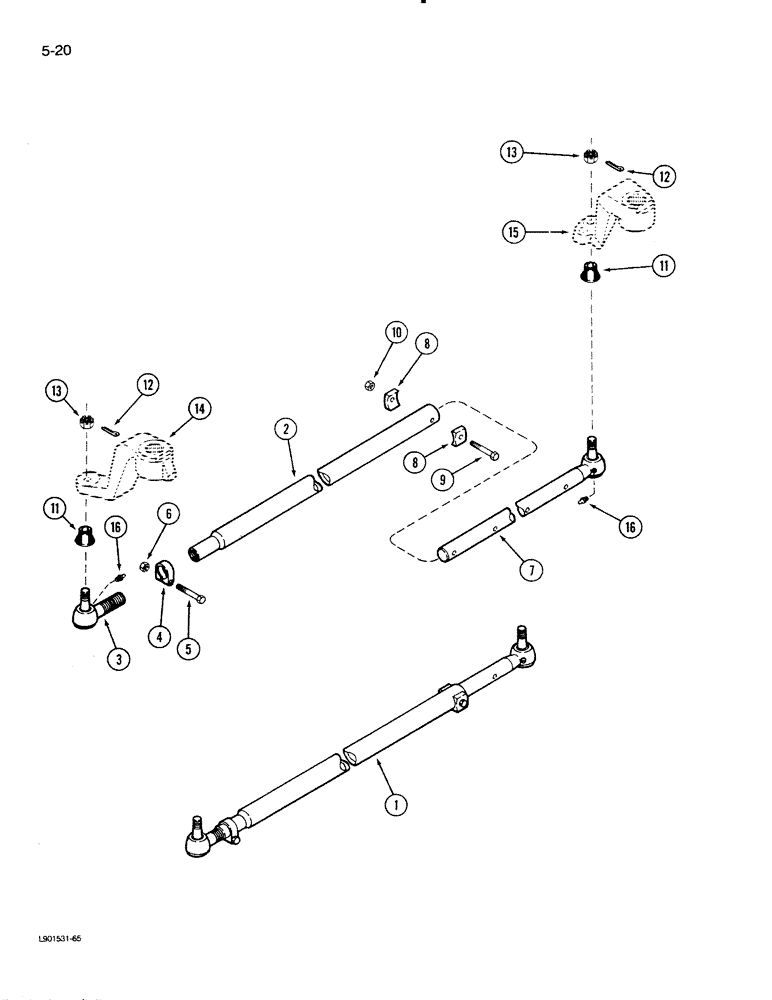

Схема запчастей Case IH 1620 - (5-20) - STEERING TIE ROD, ADJUSTABLE AXLES (04) - STEERING
1
6
8
4
8
12
7
10
3
15
13
9
2
16
5
11
13
11
12
16
14

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie (Order components), Includes: Ref. 2 - 10

1шт.

2

185174C1

TUBE

- tie rod (For 67 to 91 inch axle)

1шт.

2

185176C1

TUBE

- tie rod (For 56 to 68 inch axle)

1шт.

3

179228C1

END ASSY.

END - tie rod, right (For tubes 185174C1 and 185176C1)

1шт.

4

225265R1

CLAMP

- tie rod, right

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

6

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque, 1/2 inch NC

1шт.

7

193371C1

END ASSY.

END - tie rod, left (For tube 185174C1)

1шт.

7

196321C1

END

- tie rod, left (For tube 185176C1)

1шт.

8

A43369

CLAMP

- tie rod, left

1шт.

9

25779R1

BOLT,Hex, 3/8" - 24 x 3", Gr 8

- hex, 3/8 NF x 3 inch, Grade 8

1шт.

11

382562R1

SEAL

- tie rod end

2шт.

12

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

13

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

2шт.

14

REF

INSTRUCTION

ARM - steering, right (See figure 5-18)

1шт.

15

REF

INSTRUCTION

ARM - steering, left (See figure 5-18)

1шт.

16

218-8

FITTING - grease, 1/4 inch PT

2шт.

10

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

Выбрано товаров: 18
