Запчасти Case IH 1620 (5-16) - STEERING TIE RODS, NON-ADJUSTABLE AXLE (04) - STEERING

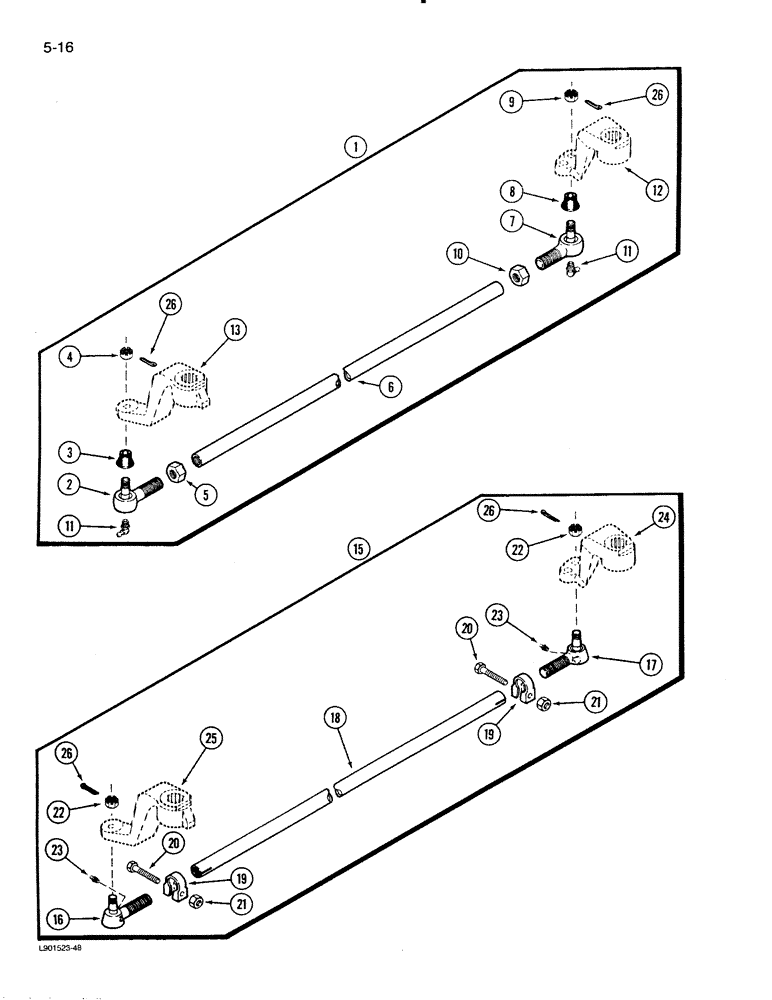

Схема запчастей Case IH 1620 - (5-16) - STEERING TIE RODS, NON-ADJUSTABLE AXLE (04) - STEERING
12
26
22
11
26
6
2
9
21
19
23
15
26
23
22
4
20
1
3
10
20
24
19
16
21
18
13
8
25
7
5
11
26
17

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY, tie, order: P/N 177772C91, Includes: Ref. 2 - 10

1шт.

O and S manufacture. Entire assembly is interchangeable with P/N177772C92. Components of assemblies are not interchageable. Order parts carefully.

1шт.

2

379551R92

END ASSY.

END ASSEMBLY - tie rod, right, Includes: Ref. 3 and 4

1шт.

3

382562R1

SEAL

- tie rod end

1шт.

4

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

5

374062R1

JAM NUT

NUT - hex lock, tie rod (Right hand threads)

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - rod (Order 177774C91)

1шт.

7

180201C91

END

ASSEMBLY - tie rod, left, Includes: Ref. 8 and 9

1шт.

8

382562R1

SEAL

- tie rod end

1шт.

9

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

10

374061R1

JAM NUT

- hex lock, tie rod (Left hand threads)

1шт.

11

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

12

REF

INSTRUCTION

ARM - steering, left (See figure 5-14)

1шт.

15

177772C91

ROD ASSY.

ROD ASSEMBLY, tie, Includes: Ref. 16 - 21

1шт.

Columbus manufacture, Entire assembly is interchangeable with P/N 177774C91, Components of assemblies are not interchangeable. Order parts carefully.

1шт.

13

REF

INSTRUCTION

ARM - steering, right (See figure 5-14)

1шт.

16

180203C1

END ASSY.

END ASSEMBLY - tie rod, right

1шт.

17

180202C1

END ASSY.

END ASSEMBLY - tie rod, left

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - rod (Order 177772C91)

1шт.

19

1300176C1

CLAMP,28.5mm ID

ASSEMBLY - tie rod, Includes: Ref. 20 and 21

2шт.

20

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

21

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

22

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

24

REF

INSTRUCTION

ARM - steering, left (See figure 5-14)

1шт.

25

REF

INSTRUCTION

ARM - steering, right (See figure 5-14)

1шт.

26

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

Выбрано товаров: 27
