Запчасти Case IH 1620 (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING

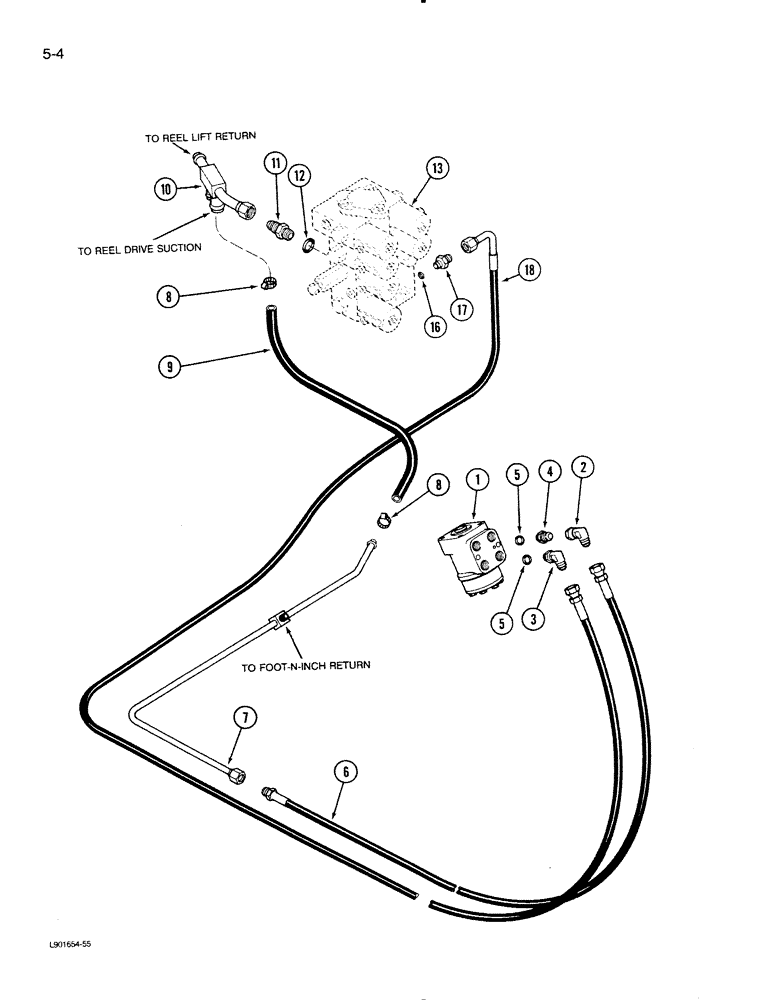

Схема запчастей Case IH 1620 - (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING
12
13
8
11
6
16
5
17
1
2
10
9
3
18
5
7
8
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Fig. 5-8)

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch flared

1шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch tube 3/4-16 thread

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

6

1317939C1

HOSE

- steering hand pump return

1шт.

7

1310938C1

HYD TUBE

TUBE ASSEMBLY - steering return

1шт.

8

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, No. 8, Type F

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - steering return, 26 inch (Order from bulk roll, S118466)

1шт.

S118466

HOSE,0.50" ID x 300.00"

0.50" ID x 300.00"

1шт.

10

1310757C1

TUBE

ASSEMBLY - header lift and steering return

1шт.

11

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

UNION - straight, reducing, 3/4 to 5/8 inch O.D. tube

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch O.D. tube, Class 6

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Fig. 8-12)

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

18

1284368C1

HYDRAULIC HOSE

HOSE - steering pressure

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

1шт.

Выбрано товаров: 17
