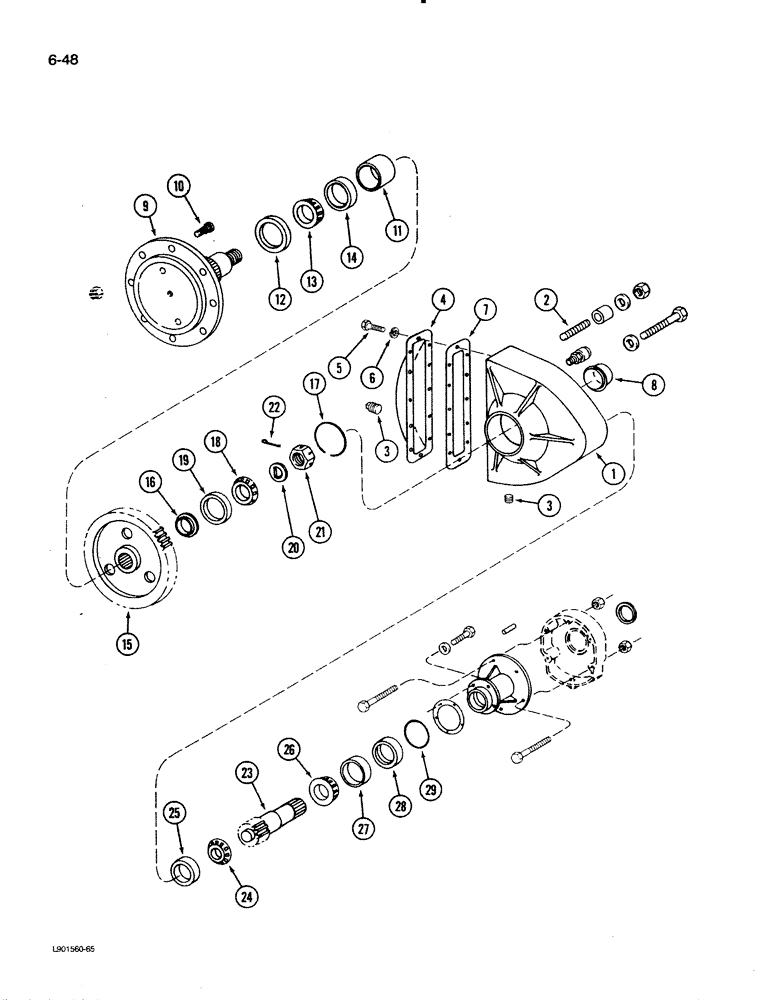

Запчасти Case IH 1620 (6-48) - FINAL DRIVE (03) - POWER TRAIN

1323472C92

DRIVE

ASSEMBLY - final, left

1шт.

1323473C92

DRIVE

ASSEMBLY - final, right

1шт.

1

1277167C1

HOUSING

- final drive, left

1шт.

1

1277168C1

HOUSING

- final drive, right

1шт.

2

1277171C1

STUD

- housing mounting

6шт.

3

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head, 3/4 inch PT

2шт.

4

587078R91

PAN ASSY.

COVER - housing

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

12шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

184229C1

SEAL

GASKET - cover

1шт.

8

107622C1

CAP

- driveshaft inner bearing

1шт.

9

184027C1

SHAFT

- final drive

1шт.

10

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel

8шт.

11

64747C1

BUSHING,82.6 mm ID x 92.2 mm OD x 50 mm

- shaft outer

1шт.

12

59881C1

OIL SEAL,96.14mm ID x 133.5mm OD x 11.89mm Thk

- outer

1шт.

13

63461C91

BEARING ASSY,3.25" ID x 5.25" OD x 1.5625"

CONE - bearing, outer 3-1/4 inch ID

1шт.

14

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

CUP - bearing, outer 5-1/4 inch O.D.

1шт.

15

107628C1

GEAR

- final drive, 69 teeth

1шт.

16

107626C1

SPACER

- gear inner

1шт.

17

107625C1

RING

- snap

1шт.

18

298033R91

TAPERED BEARING,53.98mm ID x 36.51mm W

CONE - bearing, inner 2-1/8 inch ID

1шт.

19

107624C1

BEARING CUP,104.78mm OD x 28.57mm W

CUP - bearing, inner 4-1/8 inch O.D.

1шт.

20

404076R1

WASHER

- final drive shaft

1шт.

21

1975476C1

SLOTTED NUT

- hex, final drive

1шт.

22

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

23

184180C2

SHAFT

- pinion, 13 teeth

1шт.

24

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

CONE - bearing, outer, pinion shaft, 1-5/16 inch ID

1шт.

25

50213V

BEARING CUP

CUP - bearing, outer, pinion shaft, 2-3/4 inch O.D.

1шт.

26

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

CONE - bearing, inner, pinion shaft, 2-3/16 inch ID

1шт.

27

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - bearing, inner, pinion shaft, 3-13/16 inch

1шт.

28

380186R92

OIL SEAL

- oil, adapter housing

1шт.

29

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

30

405627R1

SHIM

- adapter housing, 0.003 inch

1шт.

30

376467R1

SHIM

- adapter housing, 0.007 inch

1шт.

30

184348C1

SHIM

- adapter housing, 0.015 inch

1шт.

30

184349C1

SHIM

- adapter housing, 0.030 inch

1шт.

31

60002C91

ADAPTER

- brake housing, left

1шт.

31

60004C91

ADAPTER

ASSEMBLY - brake housing, right (Includes Ref. 48)

1шт.

32

28138R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 8

- hex, 7/16 NC x 1-1/8 inch, Grade 8

5шт.

33

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, 15/32 x 59/64 x 7/64 inch

5шт.

38

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

39

129-104

NUT,7/16"-14, G5

10шт.

40

113-346

BOLT,Hex, 7/16" - 14 x 5", Gr 5

- hex, 7/16 NC x 5 inch

6шт.

41

REF

INSTRUCTION

HOUSING - brake (See Figure 7-4)

2шт.

42

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- brake housing

2шт.

44

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

- oil

2шт.

45

329-1012

NUT,3/4"-10, G8

12шт.

46

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

14шт.

47

27356R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

- hex, 3/4 NC x 2 inch, Grade 8

2шт.

48

20556R1

DOWEL,1/2" x 3/4"

PIN - dowel, 1/2 x 3/4 inch

2шт.

49

REF

INSTRUCTION

NUT - hex, wheel retaining (See Figure 6-52)

16шт.

50

1315371C1

BUSHING

- main axle end plate

4шт.
