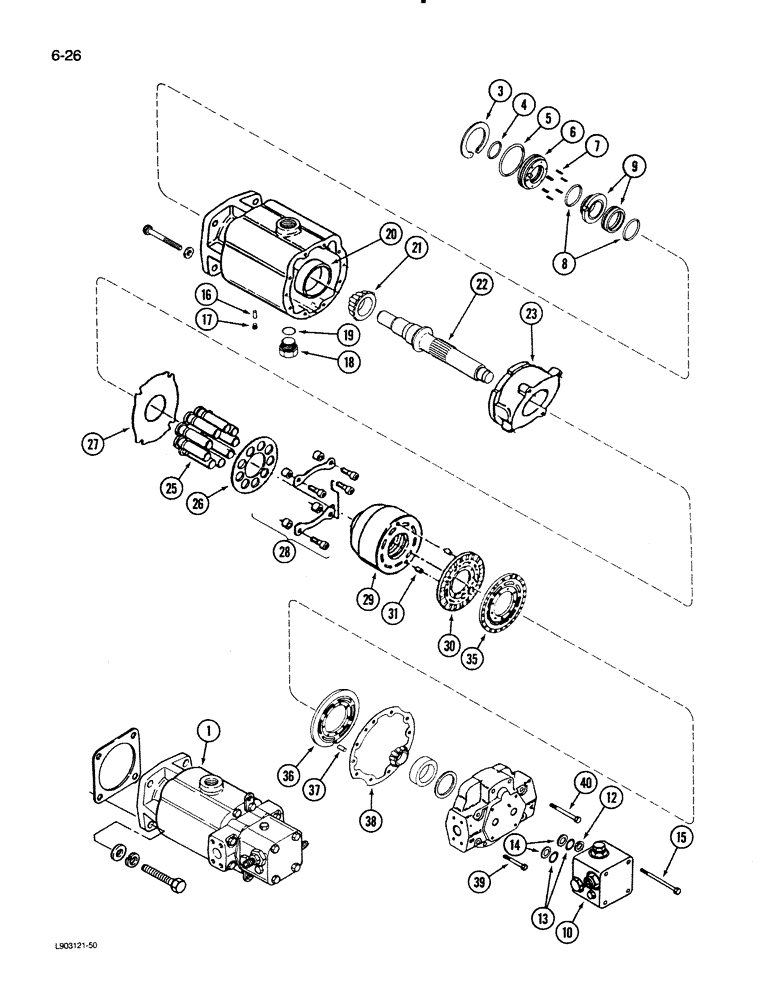

Запчасти Case IH 1620 (6-26) - HYDROSTATIC MOTOR (03) - POWER TRAIN

1

1958075C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, Includes: Ref. 1 - 40 and 41 - 59 on Fig. 6-28

1шт.

1

1958076C1

REMAN-HYDROSTAT MOTO

Motor Assembly - Hydrostatic, Remanufactured, Includes: Ref. 1 - 40 and 41 - 59 on Fig. 6-28

1шт.

1

1958077C1

CORE-HYDROSTAT MOTOR

Return Number - use this part number to return motor core for credit, Includes: Ref. 1 - 40 and 41 - 59 on Fig. 6-28

1шт.

Part number stamped on part.

1шт.

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, Includes: Ref. 3 - 9

1шт.

3

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

4

S113612

O-RING

- shaft, 1-3/8 x 1-1/2 x 1/16 inch

1шт.

5

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal (Order 142518C92)

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - shaft seal (Order 142518C92)

6шт.

8

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shaft (Order 142518C92)

1шт.

10

REF

INSTRUCTION

BLOCK ASSEMBLY - relief valve (See figure 6-30)

1шт.

140747C91

SEAL KIT

- valve block seal, Includes: Ref. 12 - 14

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- square, 3/4 x 7/8 x 1/16 inch

1шт.

13

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- 7/8 x 1-1/16 x 3/32 inch

2шт.

14

631458C1

RING

- backup

2шт.

15

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

20020R1

DOWEL,5/16" x 1"

PIN - dowel, hardened, 5/16 inch

1шт.

17

444688

PLUG

- solid head, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube

1шт.

20

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - bearing, drive shaft, 3-1/2 inch O.D.

1шт.

21

92742C1

TAPERED BEARING

CONE - bearing, drive shaft, 1-7/8 inch ID

1шт.

22

1978048C1

SHAFT

- output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1978053C1

KIT

- rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

35

142395C1

PLATE

- bearing

1шт.

36

92732C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

38

92735C2

GASKET

- end cover

1шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

40

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

Set Screw P/N 1978048c2 is used to hold the control shaft into position. It is not shown on the combine parts book. It is shown in the 2155 cotton picker parts book page 6-24, item 14 but is "NSS". The Set Screw can be obtained through Eaton. The Eaton part number is 101128. Randy Carlz has asked Engineering to also review adding this hex socket screw to the kit.

1шт.
