Запчасти Case IH 1620 (6-22) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN

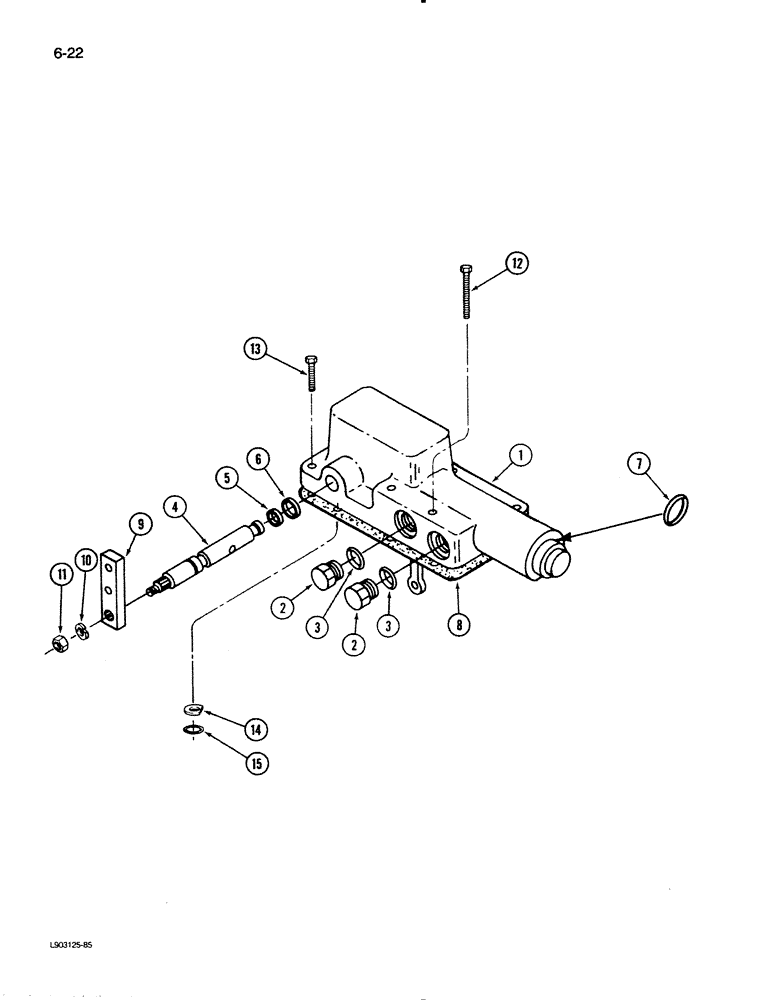

Схема запчастей Case IH 1620 - (6-22) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN
10
3
12
7
2
15
8
6
2
11
4
13
1
9
14
5
3

Артикул

Название

Примечание

Количество

133755C94

VALVE

- pump control, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 133755C94)

1шт.

2

1288963C1

PLUG

- body

2шт.

4

1978048C1

SHAFT

- control valve, Includes: Ref. 5

1шт.

The set screw is used to hold the control shaft into position. It is not shown on the combine parts book. It is shown in the 2155 cotton picker parts book Fig. 6-24, Ref. 14 but is NSS. However it can be obtained through Eaton.The Eaton P/N is 101128. Randy Carlz asked Engineering to also review adding this hex socket screw to the kit.

1шт.

5

355967R1

O-RING,0.364" ID x 0.003" Width

- 1/2 x 3/8 x 1/16 inch

1шт.

6

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

SEAL - shaft (If equipped)

1шт.

7

80269C1

O-RING KIT

O-RING - 5/8 x 3/4 x 1/16 inch

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

404782R2

PLATE

- control valve shaft

1шт.

10

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - lock, 5/16 inch

1шт.

11

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

1шт.

12

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex. 5/16 NC x 1-3/4 inch

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

14

1341841C1

O-RING

ORIFICE - control valve

1шт.

15

1341840C1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER - control valve vent retainer

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube, Includes ref. 4 - 6

2шт.

Выбрано товаров: 17
