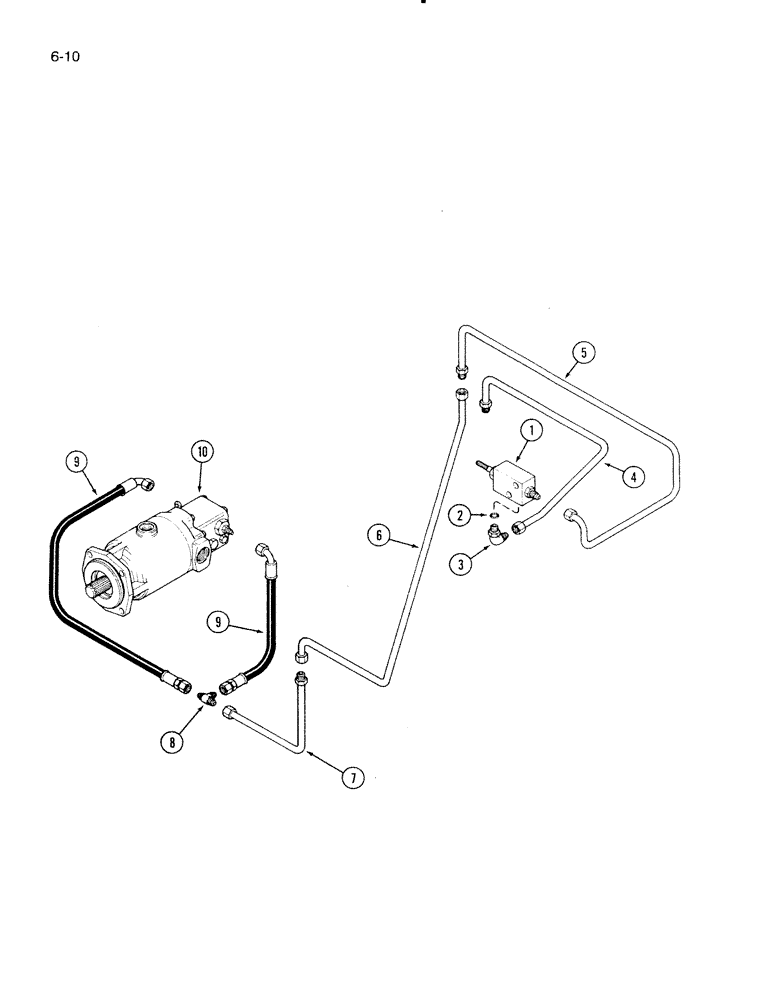

Запчасти Case IH 1620 (6-10) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch (See figure 6-12)

1шт.

3

164596C1

ELBOW

- 90 degree, 9/16-18 inch thread

1шт.

4

1321275C1

HYD TUBE,0.375" OD, 405, 310 mm Length

TUBE - Foot-N-Inch valve return

1шт.

5

1321274C2

HYD TUBE

TUBE - Foot-N-Inch upper

1шт.

6

1327830C1

HYD TUBE

TUBE - Foot-N-Inch center

1шт.

7

187751C1

HYD TUBE

TUBE - Foot-N-Inch lower

1шт.

8

9402979

TEE,7/16"-20, 37 Degree

- 7/16-20

1шт.

9

175760C1

HOSE ASSY.

HOSE - Foot-N-Inch, 10 inch

2шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-26)

1шт.

2

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 inch OD tube

1шт.
