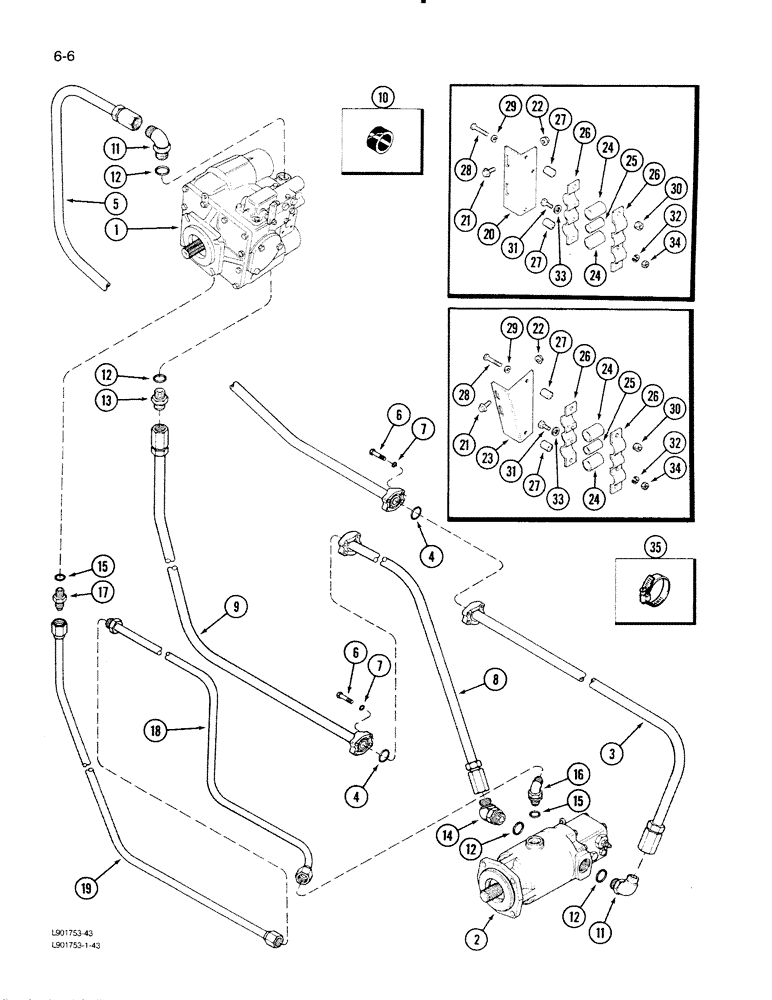

Запчасти Case IH 1620 (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-16)

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-26)

1шт.

3

1977075C1

HYD TUBE,1" OD

TUBE ASSEMBLY - drive reverse lower pressure

1шт.

4

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

2шт.

5

1970117C1

TUBE

- drive reverse upper pressure

1шт.

6

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

8шт.

7

492-11038

LOCK WASHER,3/8"

8шт.

8

1977073C1

HYD TUBE,1" OD

TUBE ASSEMBLY - drive forward lower pressure

1шт.

9

1347019C1

TUBE,25.4 mm OD, 1504, 429 mm Length

- drive forward upper pressure

1шт.

10

165722C1

SLEEVE

- tube nut rubber

2шт.

11

595408R1

90 ELBOW

- 90 degree, 1-5/16-12 x 1 inch O.D. tube

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

4шт.

13

163915C1

FITTING

CONNECTOR - 1-5/16-12

1шт.

14

595406R1

ELBOW

- 45 degree, 1-5/16-12

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D. tube

2шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, 3/4 tube 1-1/16-12 inch thread

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- short, 3/4 tube 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

18

183740C2

TUBE,0.75" OD

ASSEMBLY - bleed lower

1шт.

19

1347021C1

TUBE,19.1 mm OD, 1508, 285 mm Length

- bleed upper

1шт.

20

187936C2

BRACKET

ANGLE - tube rear support

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

23

187937C2

BRACKET

ANGLE - tube front support

1шт.

24

187935C1

STRIP

- pressure tube clamp

4шт.

25

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- bleed tube clamp

2шт.

26

187934C1

CLAMP

- tube

4шт.

27

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

4шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

30

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

35

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.
