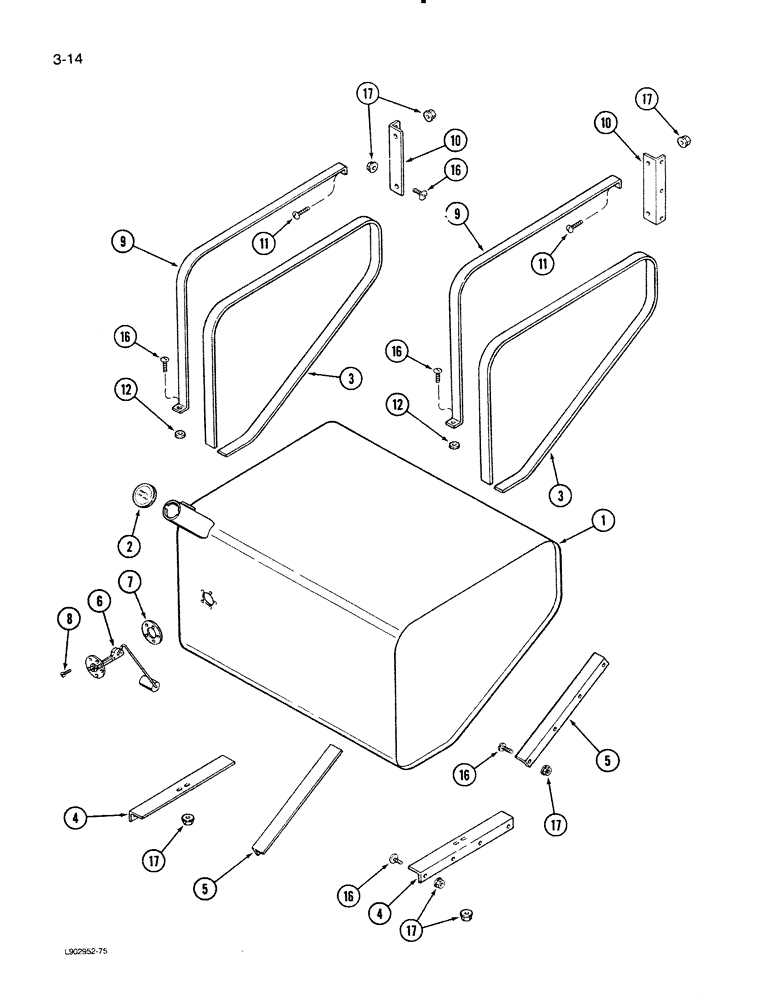

Запчасти Case IH 1620 (3-14) - FUEL TANK (02) - FUEL SYSTEM

1

194844C3

FUEL TANK

TANK ASSEMBLY - fuel, Includes: Ref. 2

1шт.

2

104781C1

CAP

- fuel tank

1шт.

3

NSS

NOT SOLD SEPARAT

STRIP - fuel tank support, lining, 72 inch (Order 990539R1, and, Serial Range: cut-length)

2шт.

4

192381C3

SUPPORT

ANGLE - fuel tank bottom support

2шт.

5

1302029C1

SUPPORT

ANGLE - fuel tank forward support

2шт.

6

198024C1

FUEL GAUGE

GAUGE ASSEMBLY - fuel tank (Sending Unit)

1шт.

7

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

9

1302031C1

STRAP

SUPPORT - fuel tank retainer (Strap)

2шт.

10

1302030C1

ANGLE

ANGLE - fuel tank front

2шт.

11

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 x 1 inch

2шт.

12

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

1шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

23шт.

16

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 2-1/2 inch

1шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

27шт.
