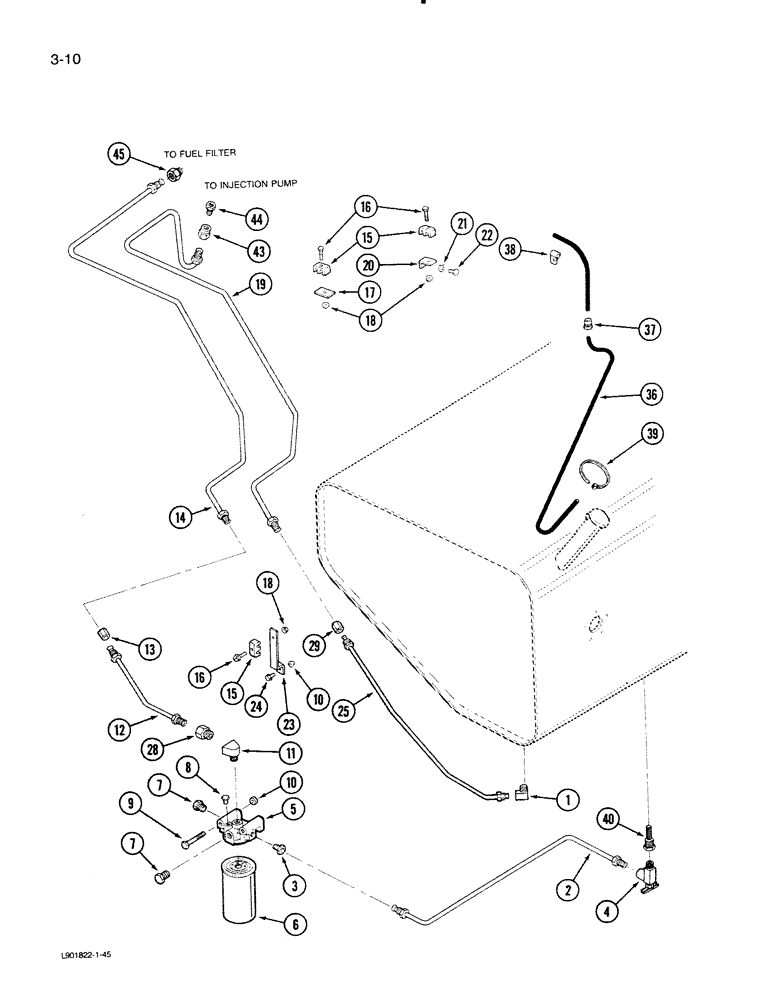

Запчасти Case IH 1620 (3-10) - FUEL LINES AND FILTER (02) - FUEL SYSTEM

1

144535R1

ELBOW

- fuel line lower tubes

1шт.

2

1301110C2

FUEL TUBE

TUBE ASSEMBLY - fuel line, filter, Serial Range: base-tank

1шт.

3

442323

CONNECTOR, ELEC

CONNECTOR - inverted flared tube, 3/8 inch

2шт.

4

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE ASSEMBLY - shutoff

1шт.

5

612277C2

FILTER HEAD

BASE ASSEMBLY - filter, fuel

1шт.

6

A184776

FUEL FILTER

ELEMENT - filter, fuel

1шт.

7

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4-18 inch

2шт.

8

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8-27 inch

1шт.

9

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

3шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- 90 degree inverted flared tube, 3/8 inch

1шт.

12

1957628C1

FUEL TUBE,0.375" OD

TUBE ASSEMBLY - fuel line, fuel supply lower

1шт.

13

442338

UNION

- inverted flared tube, 3/8 inch

1шт.

14

1347025C1

FUEL TUBE,9.52 mm OD, 639, 487 mm Length

TUBE ASSEMBLY - fuel line pressure upper

1шт.

15

183825C1

CLAMP

- fuel line tube

3шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

17

198462C1

PLATE

- fuel line upper tubes support

1шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

3шт.

19

1347026C1

FUEL TUBE,9.52 mm OD, 644, 510 mm Length

TUBE ASSEMBLY - fuel line return upper

1шт.

20

1347027C1

ANGLE

- fuel line upper tubes support

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW - hex, self tapping, 5/16 x 3/4 inch

1шт.

23

1301174C1

SUPPORT TUBE

SUPPORT - fuel line lower tubes

1шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 x 1 inch

1шт.

25

1957631C1

FUEL TUBE,0.375" OD

TUBE ASSEMBLY - fuel line return lower

1шт.

28

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., , Inverted flared tube, 3/8" 5/8"-18 Inv Fl x 1/4" NPT

1шт.

29

442338

UNION

- inverted flared tube, 3/8 inch

1шт.

36

NSS

NOT SOLD SEPARAT

TUBE - vent, tank (3175 mm long) (Order 74813C2 and, Serial Range: cut-length)

1шт.

37

195803C1

GROMMET

- tube

1шт.

38

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - tube

3шт.

39

533959R1

CABLE TIE,.135" x 11"

STRAP - tie

1шт.

40

179381C1

SIEVE

SCREEN - fuel, tank

1шт.

43

442330

FITTING

CONNECTOR - 1/4 inch PT

1шт.

44

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

45

1330561C1

FITTING

UNION - return line

1шт.
